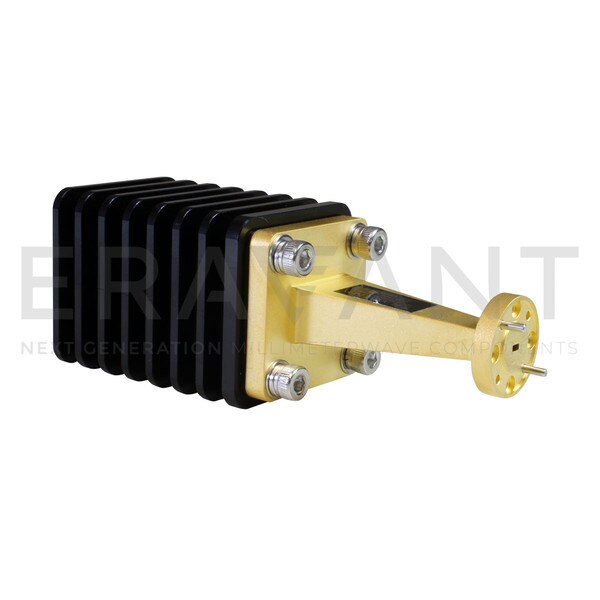

E-Band Fixed Termination Load

60 to 90 GHz, 50 W Power Handling, WR-12 Waveguide
SKU:SWL-1247-S8
Availability:4 to 6 Weeks ARO
SWL-1247-S8 is a high power, E-Band termination load that covers the frequency range of 60 to 90 GHz. The termination load exhibits a typical return loss of 25 dB and 50 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $830.00
5 - 9 $750.00
10 - 24 $675.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Power Handling, Watts50 W
Power Handling, dBm47 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-12 Waveguide
