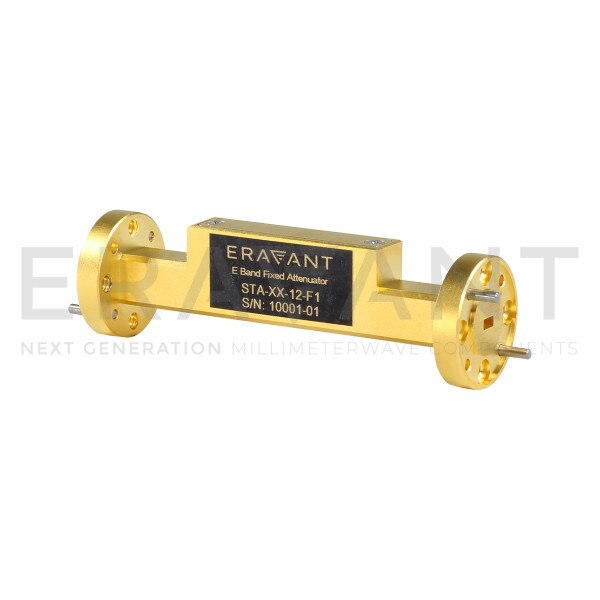

E-Band Fixed Attenuator, High Precision

60 to 90 GHz, 3 dB, WR-12 Waveguide
SKU:STA-03-12-F1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STA-03-12-F1 is a 3 dB fixed attenuator that is used in millimeterwave systems and operates from 60 to 90 GHz. The attenuator has a fixed attenuation value of 3 dB at center frequency, 75 GHz. The attenuator’s waveguides are manufactured with precision wire EDM to ensure high accuracy and a quality internal surface finish. The design features anti-cocking flanges to reduce misalignment errors and a sandblasted surface treatment to provide a durable finish. While the attenuator is designed for full waveguide band applications, the attenuation value does show a minor slope within the band due to its distinct mechanical configuration. Other attenuation values are available under different model numbers as STA-XX-12-F1, where XX is the desired attenuation value.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $450.00
25 - 49 $405.00
50 - 99 $364.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Attenuation3 dB @ 75 GHz
Return Loss20 dB
Power Handling0.5 W
RF PortWR-12 Waveguide
Attenuator TypeFixed
