E-Band Noise Source with Faraday Isolator, Product Discontinued

60 to 90 GHz, 20 dB High ENR, WR-12 Waveguide
SKU:STZ-60390320-12-I1
This product has been improved and is now listed as STZ-60390320-12-IT2. Read more about Limited Run Products here.

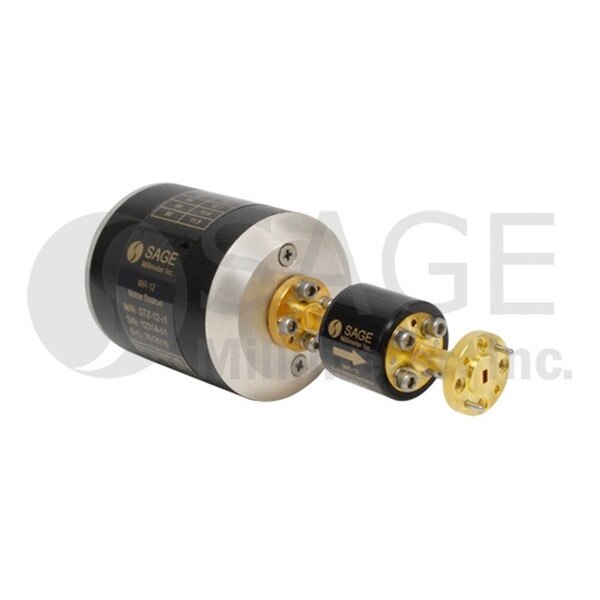

STZ-60390320-12-I1 is an E-Band, high ENR noise source that delivers a 20 dB ENR with extreme flatness across the frequency range of 60 to 90 GHz. The noise source is integrated with Eravant's high quality Faraday isolator (STF-12-S1) to improve the port VSWR and load pull for more reliable and accurate noise figure measurements. The noise source can work in either CW or pulse AM mode by applying a TTL triggering signal via a female SMA connector. This feature can also be used in automatic test systems to remotely turn the noise source on and off. In addition, a toggle switch (power/triggering inversion switch) is provided to turn the noise source on and off manually.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
ENR20 dB
ENR Flatness±1.5 dB
Temperature Stability0.01 dB/°C
Long Term Temperature Stability0.05 dB/day
DC Bias+28 VDC/75 mA
RF OutputWR-12 Waveguide
