4-Port Dual-directional Directional Coupler

60 to 90 GHz, 10 dB Coupling, 40 dB Directivity, WR-12 Waveguide, E-Band
SKU:SWD-1040H-12-DB
Availability:1 Week ARO

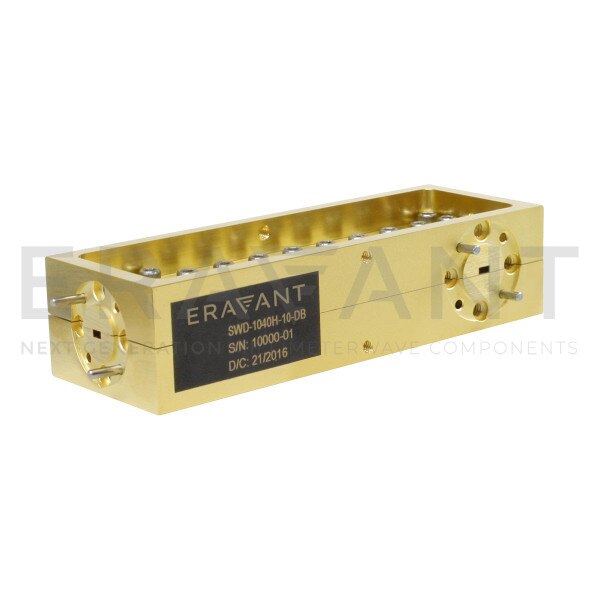

SWD-1040H-12-DB is an E-band, four-port waveguide dual-directional coupler that delivers a 10 dB nominal coupling level and 40 dB typical directivity across the full waveguide band from 60 to 90 GHz. The dual-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The waveguide interface of the coupler is WR-12 waveguides with UG-387/U flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,600.00
5 - 9$1,440.00
10 - 24$1,296.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss1.5 dB
Coupling10 dB
Directivity40 dB
Return Loss20 dB
Coupler Type4-Port Dual-directional, Split-block
RF PortsWR-12 WG
