WR-12 Waveguide Shim

60 to 90 GHz, 0.026" (L) Insertion Length, 26 Mils, 1/8 λg
SKU:SWI-12026-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

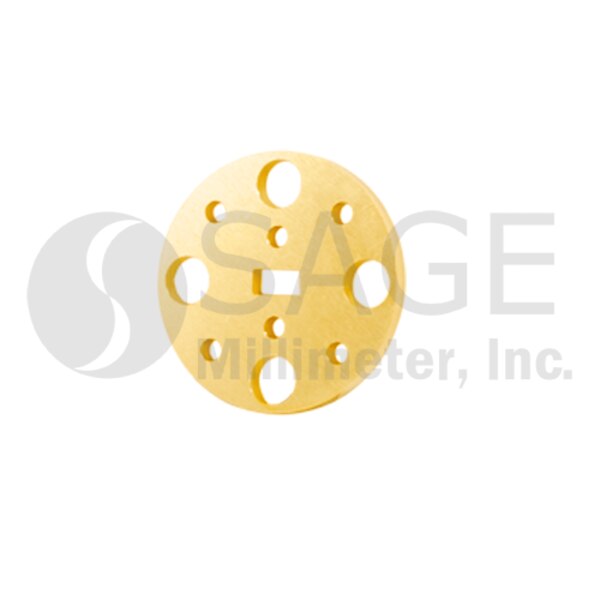

SWI-12026-SB is a 0.026" thick, 1/8 wavelength, instrumentation grade E-band spacer (shim) with WR-12 window and UG-387/U circular flange. The spacer is manufactured with a precision machining process to ensure high quality and ruggedness. The spacer is offered to cover the frequency range of 60 to 90 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Length0.026" (L)
Mils26
WaveguideWR-12 Waveguide
