V-Band Mechanically Tuned Gunn Oscillator

60 GHz, ±1.0 GHz Tuning Bandwidth, +16 dBm Output Power, WR-15 Waveguide
Availability:4 to 6 Weeks ARO

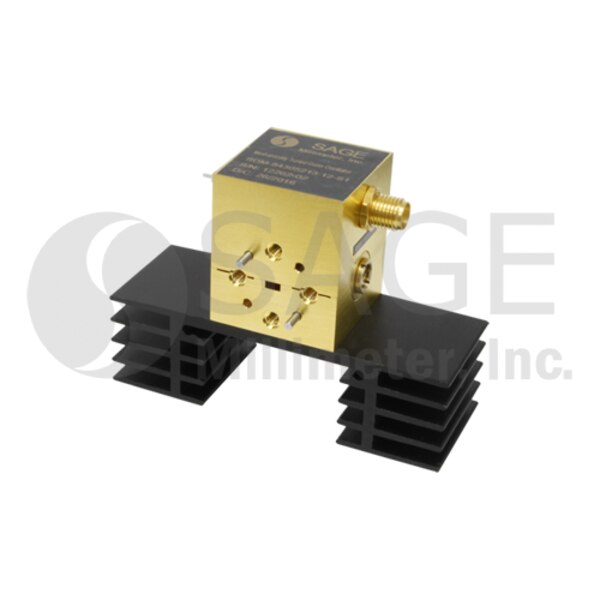

SOM-60302316-15-S1 is a V-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +16 dBm typical power. The oscillator features a frequency tuning range of 59 to 61 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,850.00
3 - 4 $2,707.50
5 - 9 $2,572.13

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Center Frequency60 GHz
Output Power+16 dBm
Mechanical Tuning Range±1000 MHz
Bias Tuning Range (+5.0 to +6.0 VDC)±100 MHz
Bias+5.5 VDC/650 mA
RF PortWR-15 Waveguide
Mechanical TuningSelf-Locking Set Screw
