E-Band, VNA Frequency Extender, Tx Module

60 to 90 GHz, 120 dB Dynamic Range, 10 to 15 GHz Input, 15 dBm Output Power, WR-12 Waveguide
SKU:STO-1220315-T-E1

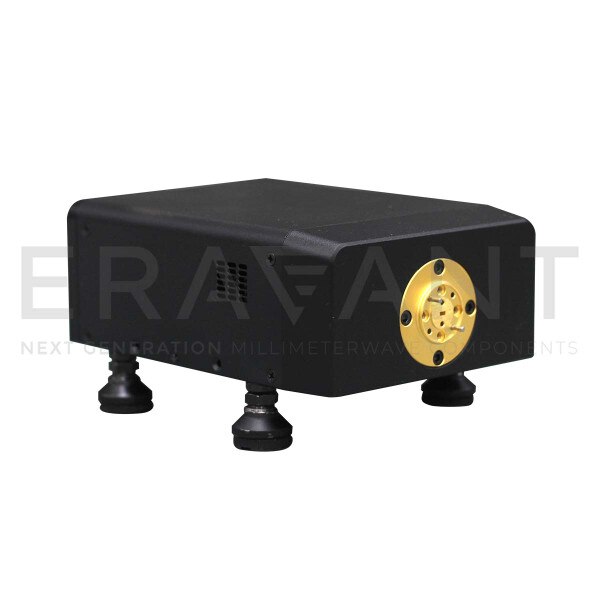

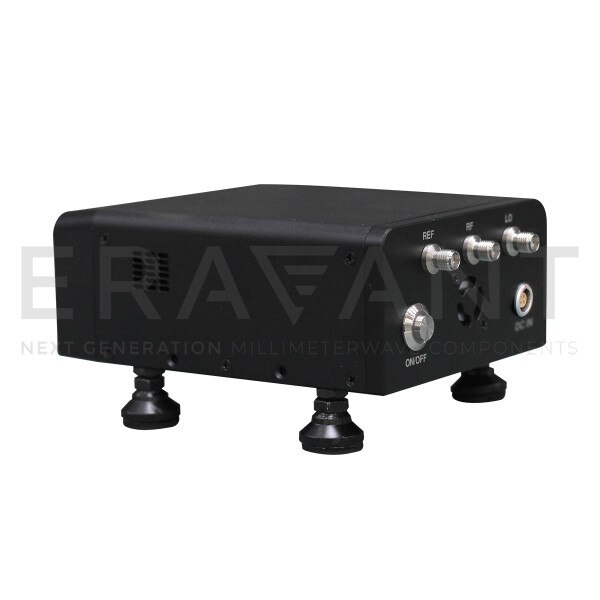

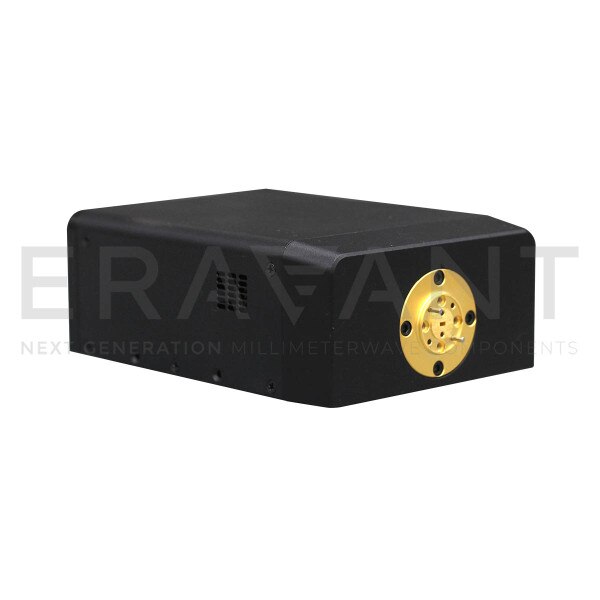

STO-1220315-T-E1 is a compact E-Band vector network analyzer (VNA) frequency extender transmit (Tx/Ref) module that extends lower frequency VNA signals to 60 to 90 GHz. It is compatible with modern vector network analyzers such as Rohde & Schwarz ZNA, Anritsu VectorStar™, Keysight PNA-X Series, and Copper Mountain CobaltFx. The VNA needs dual sources to be extended. This frequency extender, when paired with compatible receiver, can achieve a dynamic range up to 120 dB and can be used to measure one-path transmission (S21 or S12) through DUT. An AC to DC Power adapter and Proxi-Flange™ Contactless Flanges (STQ-WG-12010-FB-CF and STQ-WG-12025-FB-CF), are included. The Eravant calibration kit (STQ-TO-12-S1-CKIT1) and Wave-Glide™ Rail System (STQ-TL-RW-S10-M1) are highly recommended to complete the E-Band VNA test set. VNA extender is packaged individually in a rugged equipment box with additional hardware and tools.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Test Port Output Power15 dBm
Output Power Control Range-
Dynamic Range120 dB
Minimum Input Frequency10 GHz
Maximum Input Frequency15 GHz
RF Source Input Power+3 dBm
LO Source Input Power+3 dBm
RF PortWR-12 Waveguide
