E-Band, VNA Frequency Extender, Rx Module

60 to 90 GHz, 120 dB Dynamic Range, 10 to 15 GHz Input, 5 dBm Input Power, WR-12 Waveguide

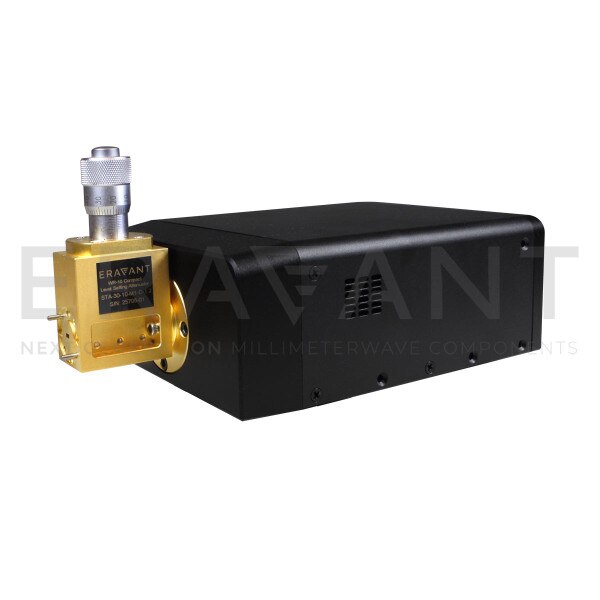

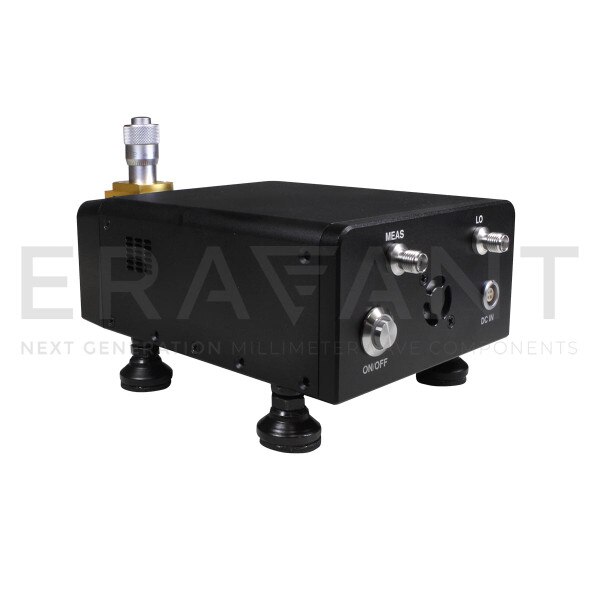

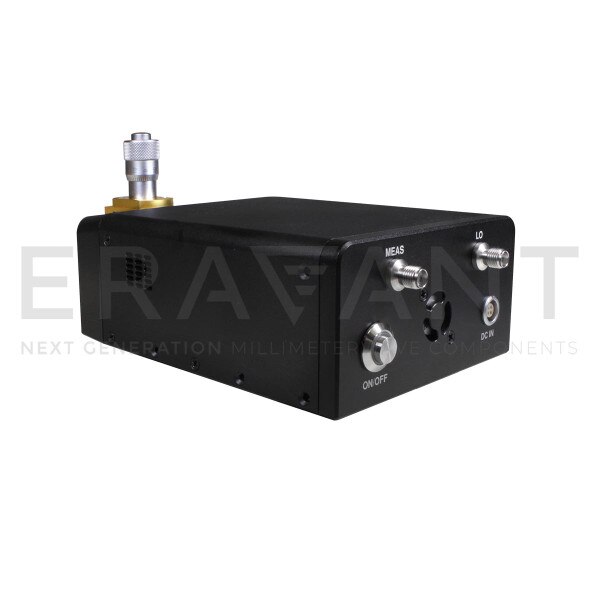

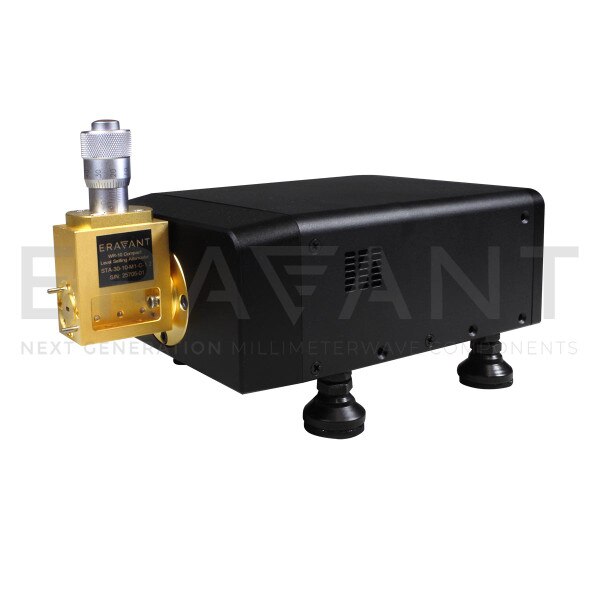

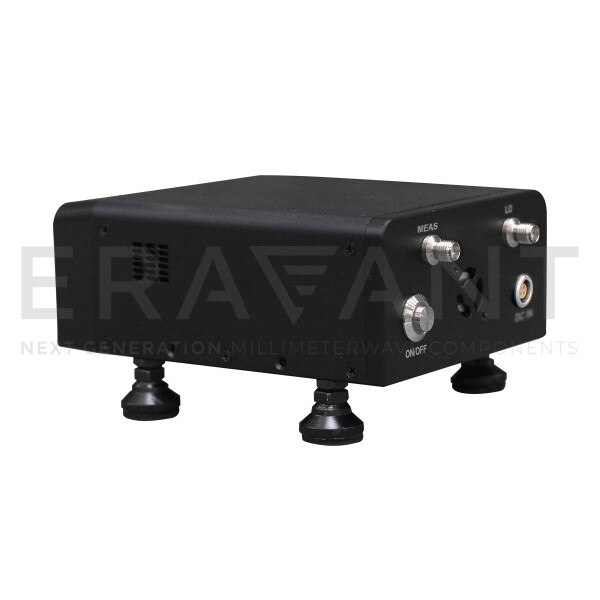

STO-1220305-R-E1 is a compact E-Band vector network analyzer (VNA) frequency extender receive (Rx) module that extends lower frequency VNA signals to 60 to 90 GHz. It is compatible with modern vector network analyzers such as Rohde & Schwarz ZNA, Anritsu VectorStar™, Keysight PNA-X Series, and Copper Mountain CobaltFx. The VNA needs dual sources to be extended. This frequency extender can be used to measure one-path transmission (S21 or S12) through DUT when paired with compatible transmitter. When Rx module is paired with Tx/Rx module, the setup can be used to measure reflection at input of DUT and transmission through DUT. AC to DC Power adapter and a Proxi-Flange™ Contactless Flange (STQ-WG-12025-FB-CF) are included. The Eravant calibration kit (STQ-TO-12-S1-CKIT1) and Wave-Glide™ Rail System (STQ-TL-RW- S10-M1) are highly recommended to complete the E-Band VNA test set. VNA extender is packaged individually in a rugged equipment box with additional hardware and tools.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Test Port Input Power5 dBm (Max)
Output Power Control RangeN/A
Dynamic Range120 dB
Minimum Input Frequency10 GHz
Maximum Input Frequency15 GHz
LO Source Input Power3 dBm
RF PortWR-12 Waveguide
