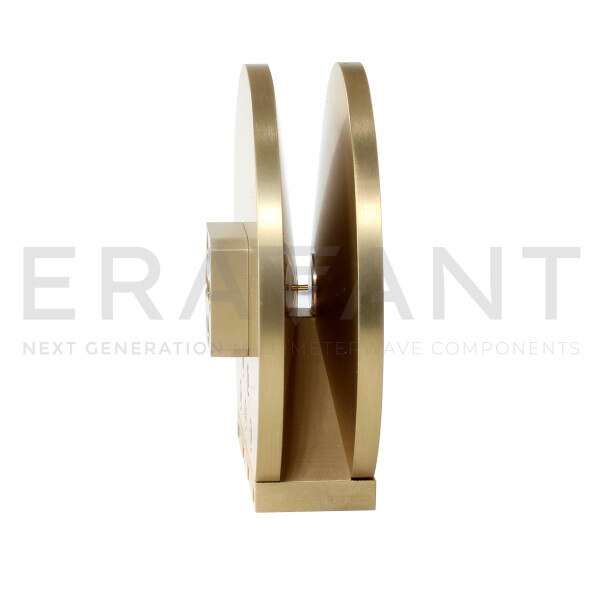

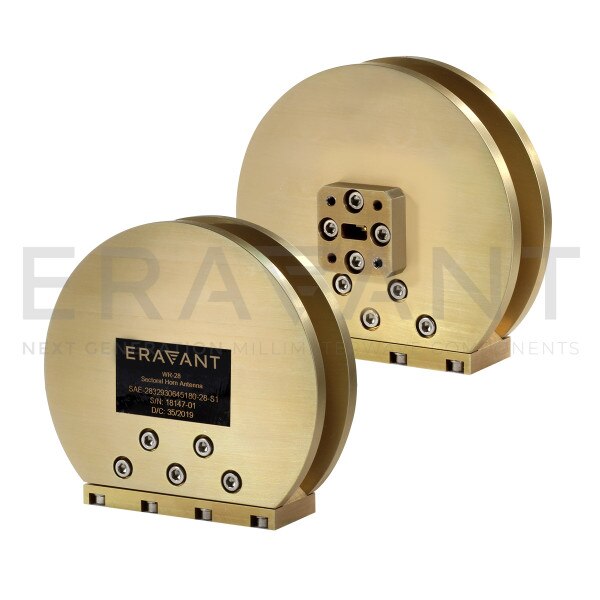

WR-28 Waveguide Sector Antenna

6 dBi Gain, 180° Azimuth, 27.5 to 29.5 GHz, Ka-Band
SKU:SAE-2832930645180-28-S1
Availability:1 Week ARO
SAE-2832930645180-28-S1 is a WR-28 sector antenna that covers the frequency range from 27.5 to 29.5 GHz. This vertically polarized antenna offers 180 degrees azimuth coverage with 6 dBi gain and ±3 dB gain flatness crosses the bandwidth. The antenna features a half power beamwidth of 45 degrees in the vertical direction. The RF interface port of the antenna is WR-28 waveguide with UG-599/U-M flange. Another antenna port configuration, such as 2.92 mm (K) coaxial interface is offered under model number, SAE-28329345180-KF-S1.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,650.00
5 - 9$1,485.00
10 - 24$1,336.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency27.5 GHz
Maximum Frequency29.5 GHz
Gain6 dBi
Azimuth180°
3 dB Beamwidth, Vertical45°
Return Loss14 dB
InputWR-28 Waveguide
