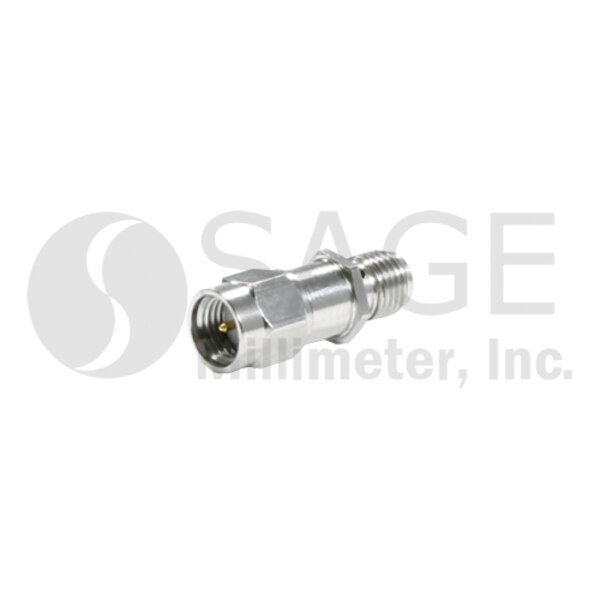

Coaxial Fixed Attenuator

6 dB Attenuation, 2.92 mm (M) to (F), DC to 40 GHz, 2 Watt
SKU:SCA-06-KMKF-S9
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SCA-06-KMKF-S9 is a 6 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 40 GHz. The attenuator has a typical attenuation value of 6 dB across the frequency range. While the attenuator is designed and fabricated for full 2.92 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 24$220.00
25 - 49$198.00
50 +$178.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Attenuation6 dB
Return Loss18 dB
Power Handling2 W
Connector 12.92 mm Male
Connector 22.92 mm Female
