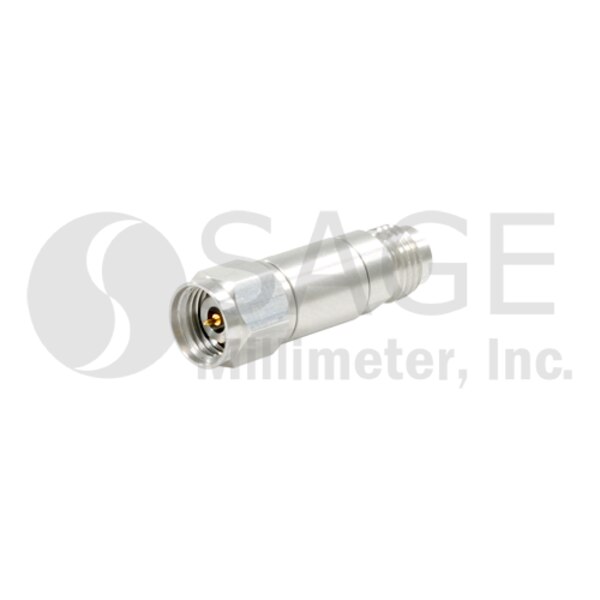

Coaxial Fixed Attenuator, Limited Run

6 dB Attenuation, 2.4 mm (M) to (F), DC to 50 GHz, 1 Watt
SKU:SCA-06-2M2F-S2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCA-06-2M2F-S9 as an alternative solution. Read more about Limited Run Products here.

SCA-06-2M2F-S2 is a 6 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 50 GHz. The attenuator has a typical attenuation value of 6 dB across the frequency range. While the attenuator is designed and fabricated for full 2.4 mm coaxial band applications, the attenuation value of this model will have a wide range due to its broadband coverage. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $335.00
25 - 49 $301.50
50 - 99 $271.35

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Attenuation6 dB
Return Loss19 dB
Power Handling1 W
Connector 12.4 mm Male
Connector 22.4 mm Female
