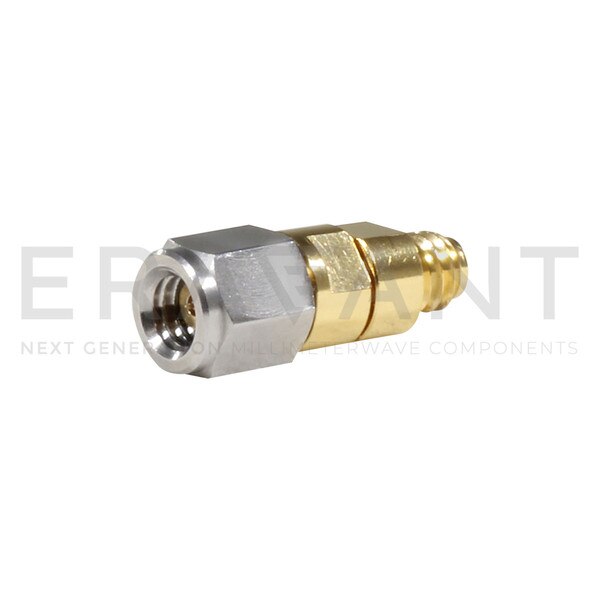

Coaxial Fixed Attenuator

6 dB Attenuation, 1.0 mm (M) to (F), DC to 110 GHz, 1 Watt
SCA-06-1M1F-UB is a 6 dB coaxial attenuator that is used in millimeterwave systems and operates from DC to 110 GHz. While the attenuator is designed and fabricated for full 1 mm coaxial band applications, the attenuation value of this model will have a wide range due its broadband coverage. Various attenuation values are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Attenuation6 dB
Return Loss14 dB
Power Handling1 W
Connector 11.0 mm Male
Connector 21.0 mm Female
