V-Band Mechanically Tuned Gunn Oscillator

59 GHz, ±1 GHz Tuning Bandwidth, +16 dBm Output Power, WR-10 Waveguide
SKU:SOM-59302316-15-S1
Availability:59 GHz, ±1 GHz Tuning Bandwidth, +16 dBm Output Power, WR-15 Waveguide

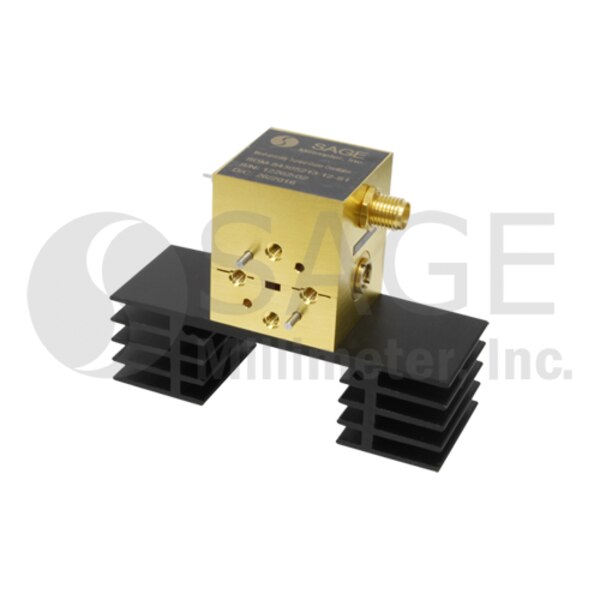

SOM-59302316-15-S1 is a V-Band, mechanically tuned Gunn oscillator that utilizes a high-performance GaAs Gunn diode and proprietary cavity design to deliver +16 dBm typical power. The oscillator features a frequency tuning range of 58 to 60 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier-based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPriceAvailability
1 - 2$2,850.002 to 3 Weeks ARO
3 - 4$2,707.50
5 - 9$2,572.13

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency59 GHz
Output Power+16 dBm
Mechanical Tuning Range±1.0 GHz
Bias Tuning Range±100 MHz
Bias+5.5 VDC/650 mA
RF PortWR-15 Waveguide
Mechanical TuningSelf-Locking Set Screw
