Q-Band Weather Resistant Cassegrain Antenna

This item is oversized and will require special packaging. Pricing for a custom crate will be quoted separately.

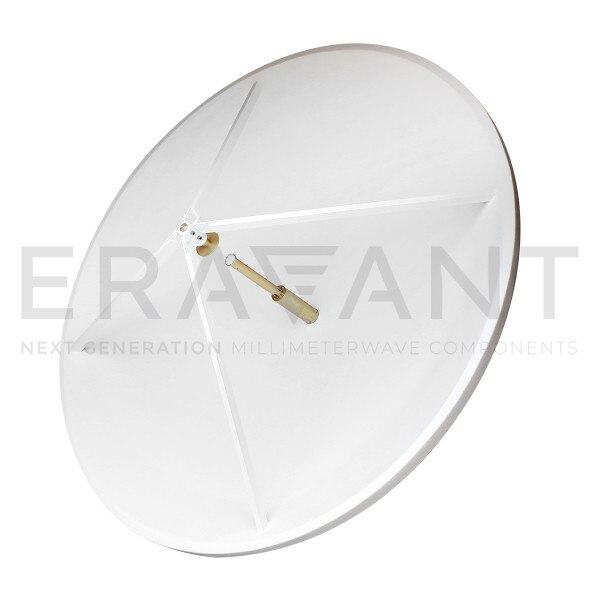

SAY-3735135602-219-S1-WR is a weather resistant Q-Band Cassegrain antenna that offers a nominal gain of 56 dBi and a half power beamwidth of 0.2 degrees. The main reflector is fabricated with fiber glass to offer a light weight and rugged mechanical structure and has a polyamide epoxy paint for protection in all enviroments. The corrugated horn is used to provide the best feed efficiency and the most uniform illumination. The input port is a Ø0.219” circular waveguide with UG-383/U-M grooved anti-cocking flange that is equipped with an O-ring to seal the connection between the RF ports. The anntenna can support both linear and circular polarized waveforms. By adding a mode transition, Eravant model SWT-22219-SB, the input port becomes a standard WR-22 waveguide that can only support linear polarized waveforms.
