X6 Active Frequency Multiplier

55 to 90 GHz, +16 dBm Output Power, In-line WR-12 Waveguide, E-Band
SKU:SFA-553903616-12SF-E1
Availability:4 to 5 Weeks ARO

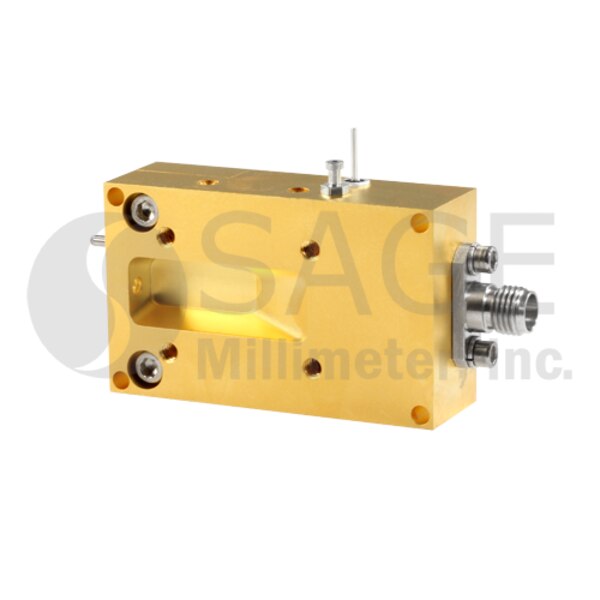

SFA-553903616-12SF-E1 is an active X6 frequency multiplier. The multiplier has an input frequency of 9.17 GHz to 15 GHz with a typical input power of +3 dBm and an output frequency of 55 to 90 GHz with a typical output power of +16 dBm. The multiplier also has a typical harmonic suppression of 15 dBc. The DC power requirement for the multiplier is +8 VDC/350 mA. The input port configuration is a female SMA connector and the output is a WR-12 waveguide with a UG-387/U anti-cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7.b.1
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency55 GHz
Maximum Output Frequency90 GHz
Output Power+16 dBm
Minimum Input Frequency9.17 GHz
Maximum Input Frequency15 GHz
Input Power+3 dBm
DC Bias+8 VDC/350 mA
Output PortWR-12 WG
Input PortSMA (F)
