V-Band Subharmonic Single Sideband Modulator

55 to 71 GHz, 18 dB Conversion Loss, 20 dB Image Rejection

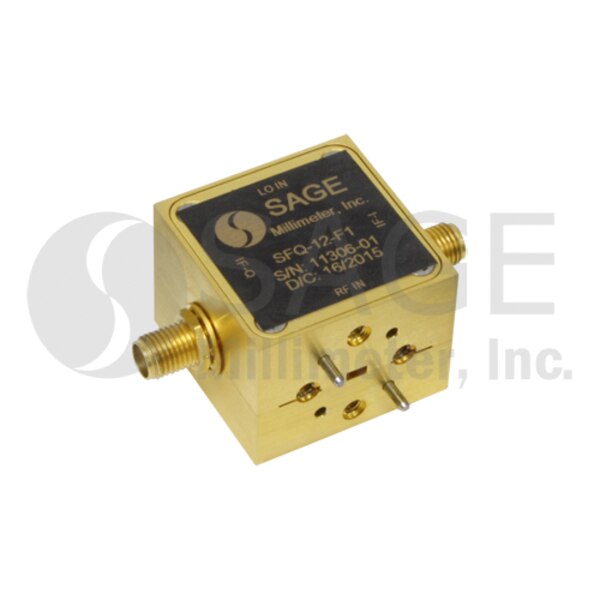

SFN-55371318-15KFSF-N1-M is a V Band subharmonic single sideband modulator that converts the input RF frequency of 27.5 to 35.5 GHz, which is half of the output RF frequency of 55 to 71 GHz. The typical conversion loss of the modulator is 18 dB with the quadrature IF driving signals of ±10 Vp-p/5 mA for both I and Q ports. The typical input/output isolation is 30 dB and the image rejection is 20 dB, respectively. In addition, the modulator can be readily used as an I/Q mixer or image rejection mixer by using the RF input port as LO port and/or adding the IF hybrid coupler.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Output RF Frequency Minimum55 GHz
Output RF Frequency Maximum71 GHz
Input RF Frequency Minimum27.5 GHz
Input RF Frequency Maximum35.5 GHz
IF Frequency MinimumDC
IF Frequency Maximum3 GHz
Conversion Loss18 dB
Image Rejection20 dB
