V-Band Reflective SP4T PIN Diode Switch

55 to 65 GHz, 35 dB Isolation, WR-15 Waveguide
SKU:SK4-5536536535-1515-R1-M
Availability:1 Week ARO

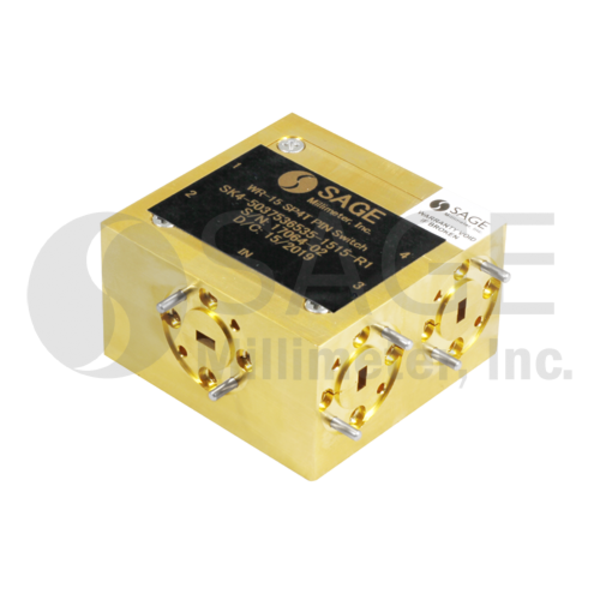

SK4-5536536535-1515-R1-M is a PIN diode based, single pole, four throw (SP4T) reflective switch with a TTL driver that operates between 55 and 65 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing high loss transmission. The SP4T switch offers 35 dB port-to-port isolation with a switching speed of up to 100 nanoseconds. The switch is configured with WR-15 waveguides and standard UG-385/U flanges at the input and outputs and a 10-pin male Molex connector to bias and control the TTL driver.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$4,250.00
3 - 4$4,037.50
5 +$3,835.63

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency55 GHz
Maximum Frequency65 GHz
Insertion Loss6.5 dB
Isolation35 dB
Power Handling+20 dBm
Bias±5 VDC/100 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-15 Waveguide
