X2 Active Frequency Multiplier

54 to 66 GHz, +23 dBm Output Power, WR-15 Waveguide, V-Band

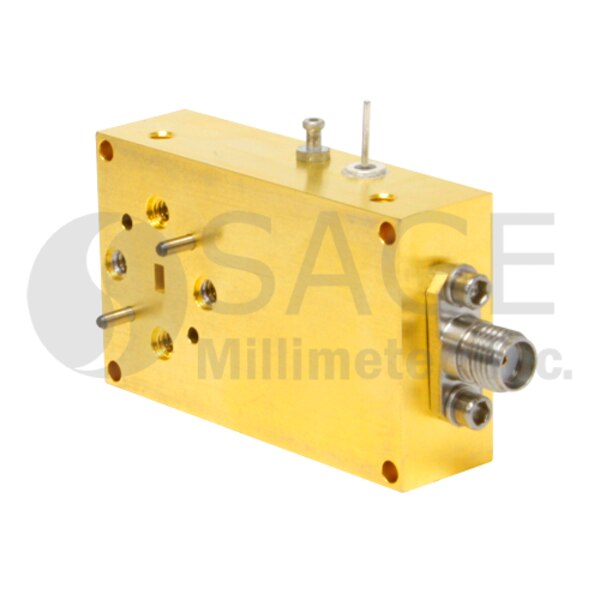

SFA-543663223-15KF-S1 is an active X2 frequency multiplier. The multiplier has an input frequency of 27 to 33 GHz with a typical input power of +5 dBm and an output frequency of 54 to 66 GHz with a typical output power of +23 dBm. The multiplier also has a typical harmonic suppression of -20 dBc. The DC power requirement for the multiplier is +8 VDC/800 mA. The input port configuration is a female K connector and the output is a WR-15 waveguide with a UG-385/U flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency54 GHz
Maximum Output Frequency66 GHz
Output Power+23 dBm
Minimum Input Frequency27 GHz
Maximum Input Frequency33 GHz
Input Power+5 dBm
DC Bias+8 VDC/800 mA
Output PortWR-15 WG
Input Port2.92 mm (F)
