V-Band Junction Isolator

54 to 58 GHz, 18 dB Isolation, WR-15 Waveguide
SKU:SNW-5435830518-15-I1

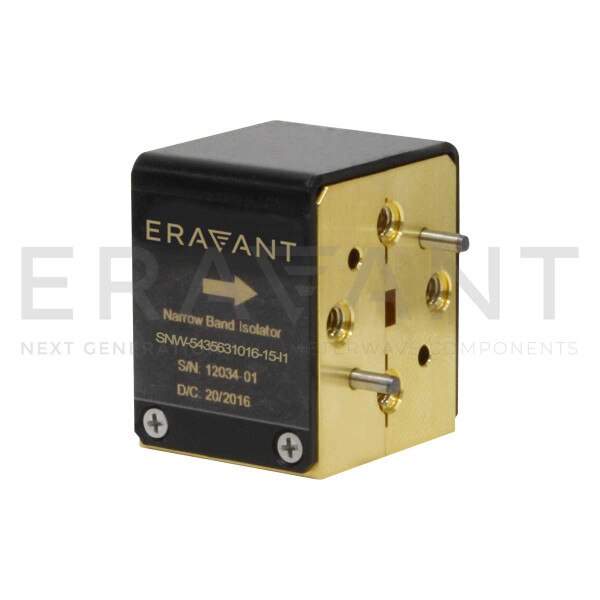

SNW-5435830518-15-I1 is a V band waveguide junction isolator that covers the frequency range of 54 to 58 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 18 dB. The input and output ports are WR-15 waveguides with UG-385/U anti-cocking flange.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,250.00
5 - 9 $1,125.00
10 - 24 $1,012.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency54 GHz
Maximum Frequency58 GHz
Insertion Loss0.5 dB
Isolation18 dB
Return Loss15 dB
Forward Power Handling2 W (CW)
Reverse Power Handling0.5 W (CW)
RF PortWR-15 Waveguide
Device TypeIsolator
