Broadband Reflective SPDT Solid State Switch

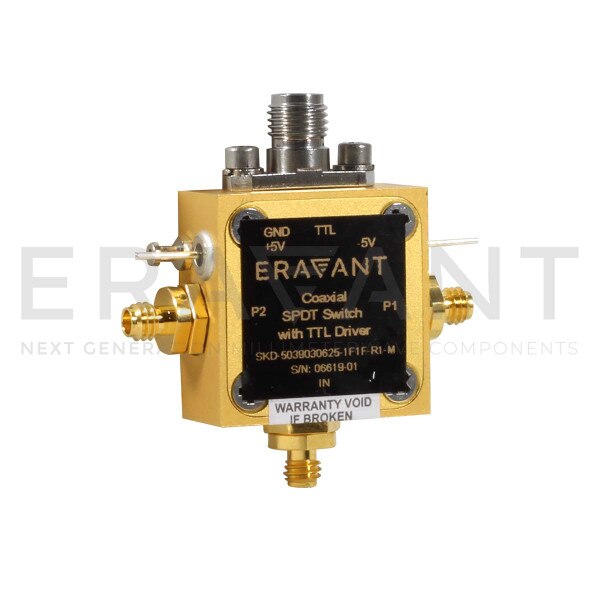

SKD-5039036025-1F1F-R1-M is a MMIC based, solid state single pole, double throw (SPDT), reflective type switch with a TTL driver that operates between 50 and 90 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing circuit loss transmission losses. The SPDT switch offers 25 dB port-to-port isolation with a typical switching speed of 100 nanoseconds. The input and output connectors of the switch are 1.0 mm female. Other connector options, such as WR-12 waveguide, is offered under model number of SKD-6039033530-1212-R1-M.
