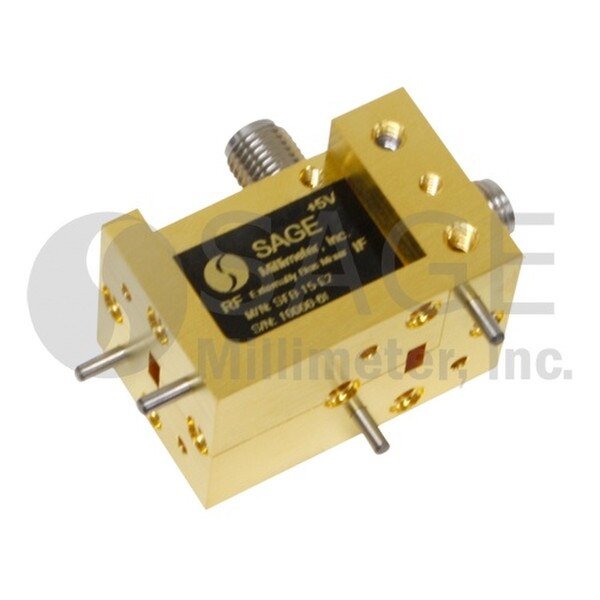

V-Band Externally Biased Balanced Upconverter

50 to 75 GHz, DC to 25 GHz IF, +3 dBm LO Power, WR-15 Waveguide
SKU:SFU-15-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFU-15-E2 is a V-Band, externally biased, balanced upconverter. The upconverter supports the full waveguide band operation for both LO and RF frequencies from 50 to 75 GHz with an extremely broad IF output from DC to 25 GHz. The upconverter offers a typical conversion loss of 9 dB and a high IF to LO port isolation. The main advantage of using an externally biased upconverter is that it only requires a local oscillator (LO) power of 0 to +5 dBm when a bias of +5 VDC is applied. This eliminates the need for an expensive local oscillator, making system integrations more affordable.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$2,900.00
3 - 4$2,755.00
5 - 9$2,617.25

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency50 GHz
Maximum RF Frequency75 GHz
Minimum LO Frequency50 GHz
Maximum LO Frequency75 GHz
Minimum IF FrequencyDC
Maximum IF Frequency25 GHz
LO Pumping Power+3 dBm
Conversion Loss9 dB
RF PortWR-15 Waveguide
