4-Port Bi-directional Directional Coupler

50 to 75 GHz, 6 dB Coupling, 40 dB Directivity, WR-15 Waveguide, V-Band
SKU:SWD-0640H-15-BB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

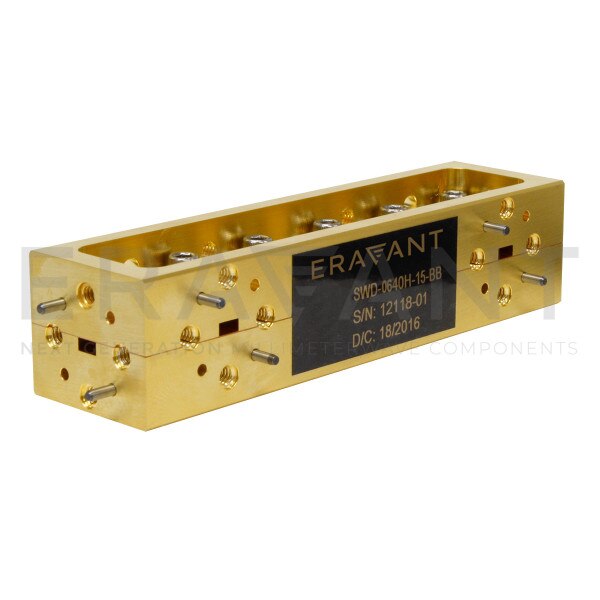

SWD-0640H-15-BB is a V band, four-port waveguide bi-directional coupler that delivers a 6 dB nominal coupling level and 30 dB minimum directivity across the full waveguide band from 50 to 75 GHz. The bi-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-15 waveguides with UG-385/U flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 - 24$850.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss0.7 dB
Coupling6 dB
Directivity40 dB
VSWR1.1
Coupler Type4-Port Bi-directional, Split-block
RF PortsWR-15 WG
