V-Band Scalar Network Analyzer Frequency Extender

50 to 75 GHz, 30 dB IL Dynamic Range, 20 dB RL Dynamic Range, WR-15 Waveguide
SKU:STN-SF415-04-D2
Availability:6 to 8 Weeks ARO

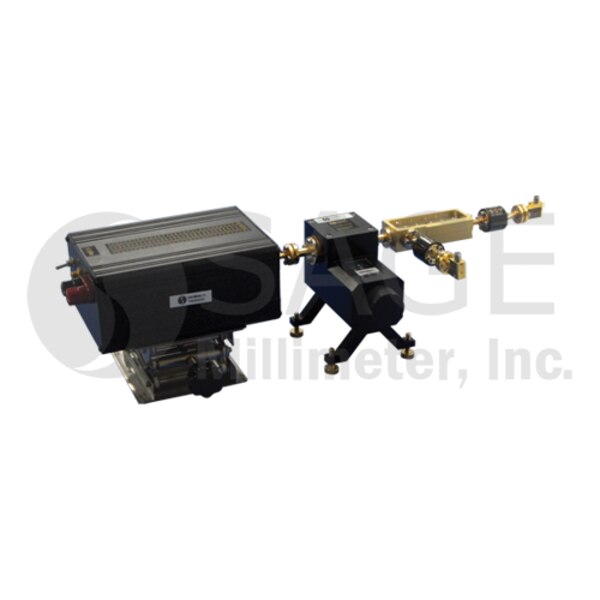

STN-SF415-04-D2 is a V-band scalar network analyzer extender that extends low frequency scalar network analyzers to 50 to 75 GHz. The extender offers a low cost means of producing V-band measurements while preserving the functionality and features of standard models. The extender is constructed with Eravant's high performance millimeterwave frequency extender (STE-SF415-04-S1), direct reading attenuator (STA-60-15-D1), directional coupler (SWD-1040H-15-SB), and waveguide detectors (STD-15SF-NI).
ECCN: EAR99
To view pricing or check order status

Technical Details

Minimum Output Frequency50 GHz
Maximum Output Frequency75 GHz
Output Power+4 dBm
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.75 GHz
Input Power+5 dBm
Dynamic Range (IL, RL)30 dB, 20 dB
DC Bias+8 VDC/450 mA
RF Output PortWR-15 WG
