3-Port Directional Coupler, Limited Run

50 to 75 GHz, 3 dB Coupling, 40 dB Directivity, WR-15 Waveguide, V-Band
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWD-0340H-15-SB as an alternative solution. Read more about Limited Run Products here.

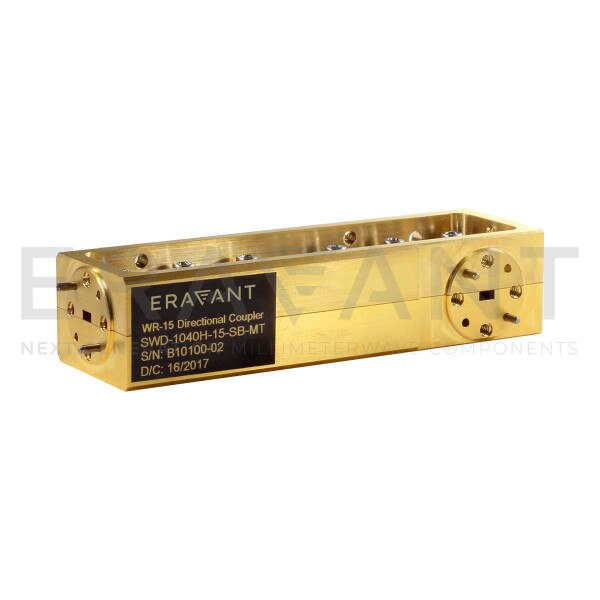

SWD-0340H-15-SB-MT is a V-band, three-port waveguide directional coupler that delivers a 3 dB nominal coupling level and 30 dB minimum directivity across the full waveguide band from 50 to 75 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The RF ports of the coupler are WR-15 waveguides with UG-385/U flanges. Other standard coupling levels (3, 6, 10, 20, 30, and 40 dB) are available under different model numbers as SWD-XX40H-15-SB-MT, where XX is the desired coupling level.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $750.00
10 - 24 $675.00
25 - 49 $607.50

Bulk Availability

1 - 4In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss1.0 dB
Coupling3 dB
Directivity40 dB
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-15 WG
