V-Band Fixed Termination Load

50 to 75 GHz, 250 W Power Handling, WR-15 Waveguide
SKU:SWL-1554-S8
Availability:IN STOCKPlease contact us if you need more units than what is available online.

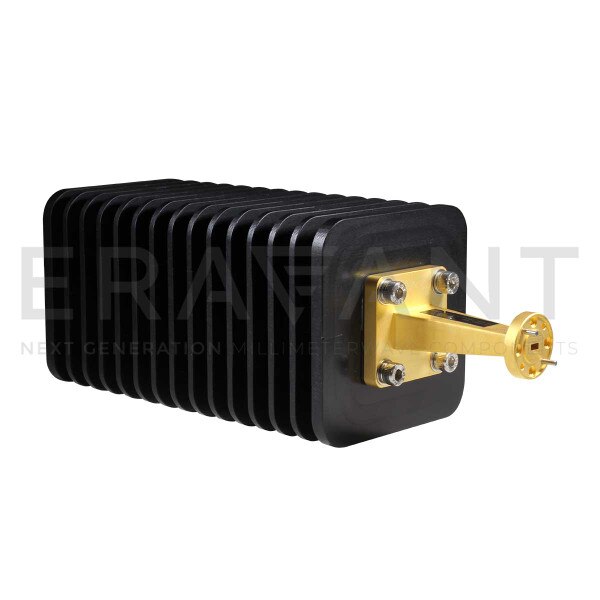

SWL-1554-S8 is a high power, V-Band termination load that covers the frequency range of 50 to 75 GHz. The termination load exhibits a typical return loss of 22 dB and 250 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Power Handling, Watts250 W
Power Handling, dBm54 dBm
Return Loss22 dB
Load TypeFixed
Waveguide PortWR-15 Waveguide
