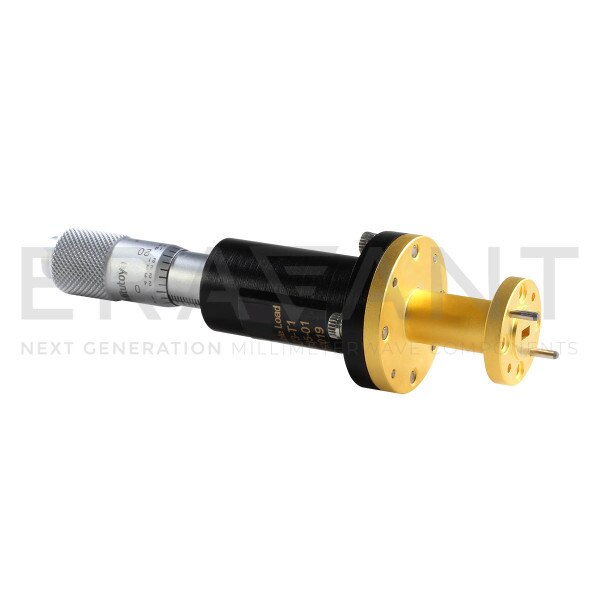

V-Band Tunable Load

50 to 75 GHz, 0.2 W Power Handling, WR-15 Waveguide
SKU:SWL-1523-T1
Availability:4 to 6 Weeks ARO
SWL-1523-T1 is a V-band tunable waveguide load that covers the frequency range of 50 to 75 GHz. The tunable load is constructed with a linear bearing and high precision Mitutoyo micrometer to guarantee smooth, long term repeatable mechanical movements. The tunable load offers 30 dB minimum return loss and up to +23 dBm RF power handling.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,050.00
5 - 9 $945.00
10 - 24 $850.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Power Handling, Watts0.2 W
Power Handling, dBm23 dBm
VSWR1.06
Load TypeTunable
Waveguide PortWR-15 Waveguide
