V-Band, VNA Frequency Extender, Tx Module

50 to 75 GHz, 120 dB Dynamic Range, 12.5 to 18.75 GHz Input, 5 dBm Output Power, WR-15 Waveguide
SKU:STO-1520305-T-E1

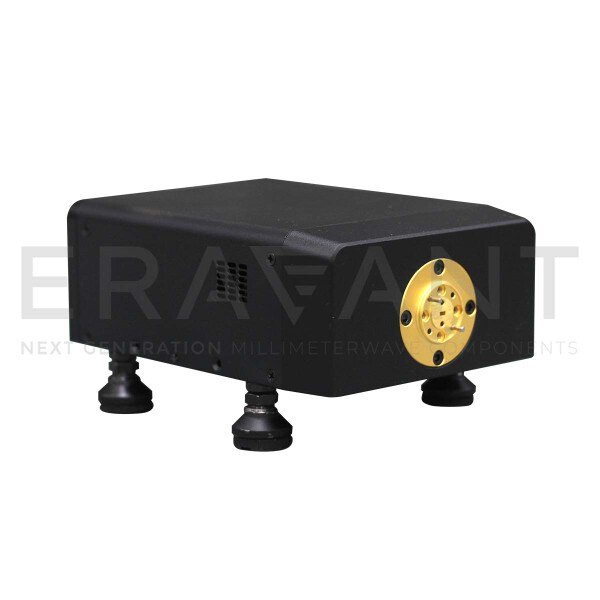

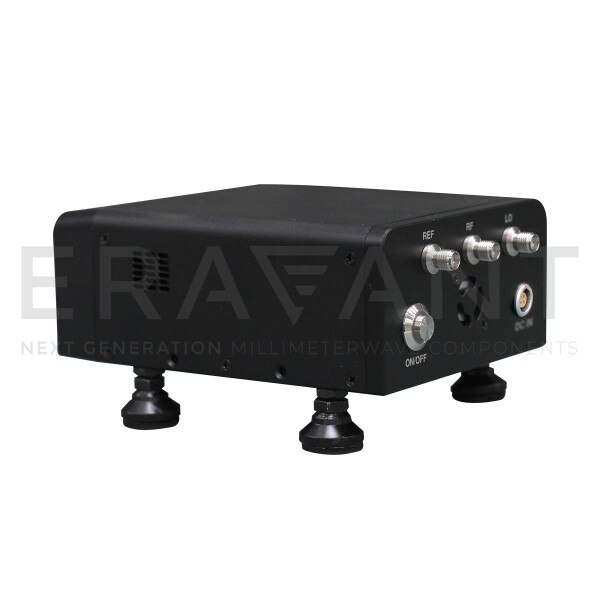

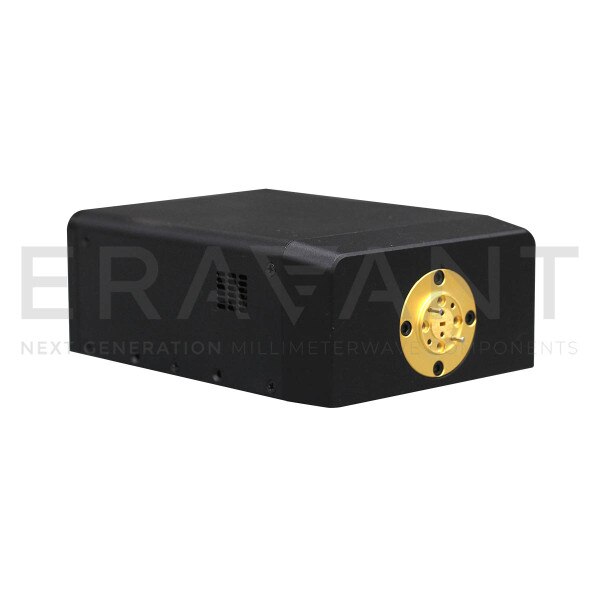

STO-1520305-T-E1 is a compact V-Band vector network analyzer (VNA) frequency extender transmit (Tx/Ref) module that extends lower frequency VNA signals to 50 to 75 GHz. It is compatible with modern vector network analyzers such as Rohde & Schwarz ZNA, Anritsu VectorStar™, Keysight PNA-X Series, and Copper Mountain CobaltFx. The VNA needs dual sources to be extended. This frequency extender, when paired with compatible receiver, can achieve a dynamic range up to 120 dB and can be used to measure one-path transmission (S21 or S12) through DUT. An AC to DC Power adapter and a Proxi-Flange™ Contactless Flange (STQ-WG-15025-FB-CF), are included. The Eravant calibration kit (STQ-TO-15-S1-CKIT1) and Wave-Glide™ Rail System (STQ-TL-RW-S10-M1) are highly recommended to complete the V-Band VNA test set. VNA extender is packaged individually in a rugged equipment box with additional hardware and tools.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Test Port Output Power5 dBm
Output Power Control Range-
Dynamic Range120 dB
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.75 GHz
RF Source Input Power+3 dBm
LO Source Input Power+3 dBm
RF PortWR-15 Waveguide
