U-Band Junction Isolator

47 to 52 GHz, 18 dB Isolation, WR-19 Waveguide
SKU:SNW-4735230518-19-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

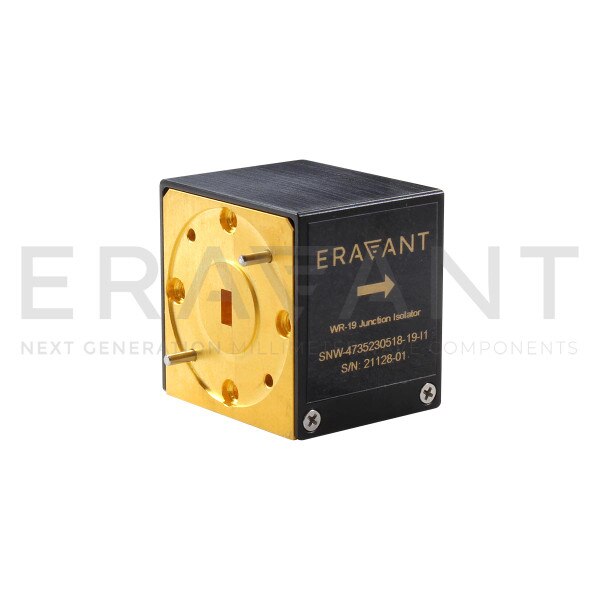

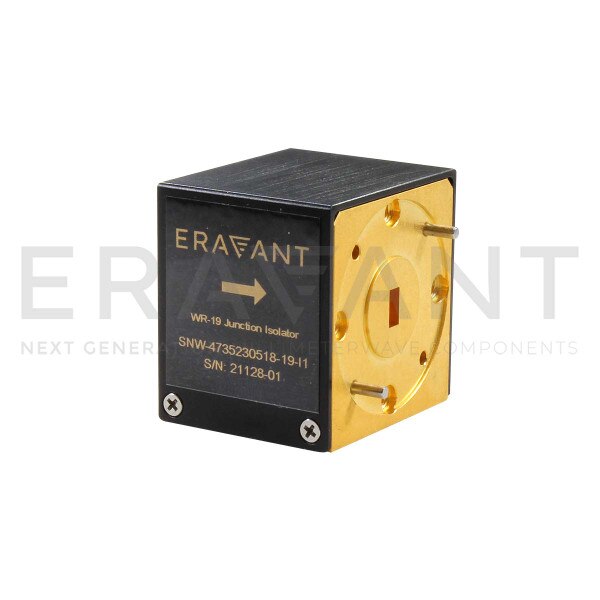

SNW-4735230518-19-I1 is a U band waveguide junction isolator that covers the frequency range of 47 to 52 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-19 waveguides with UG-383/U-M anti-cocking flanges. Various configurations and frequency ranges are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $880.00
10 - 24 $792.00
25 - 49 $712.80

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency47 GHz
Maximum Frequency52 GHz
Insertion Loss0.5 dB
Isolation18 dB
Forward Power Handling5 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-19 Waveguide
Device TypeIsolator
