Q-Band Junction Isolator

46 to 48 GHz, 18 dB Isolation, WR-22 Waveguide
SKU:SNW-4634830518-22-I1
Availability:4 to 6 Weeks ARO

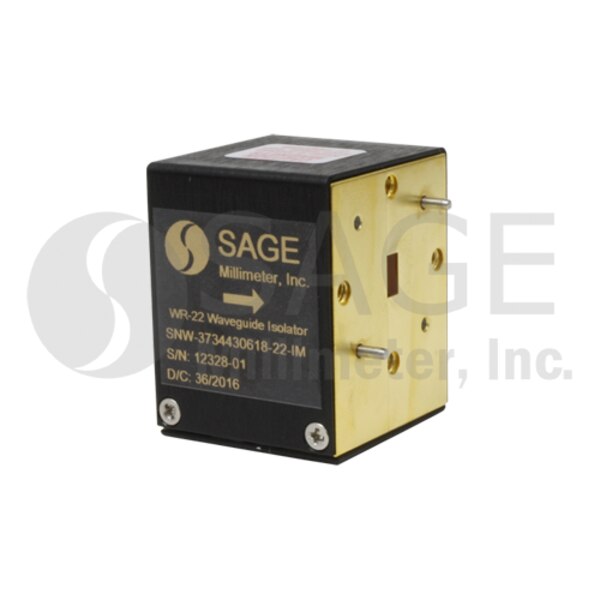

SNW-4634830518-22-I1 is a Q band waveguide junction isolator that covers the frequency range of 46 to 48 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-22 waveguides with UG-383/U flanges. Various configurations and frequency ranges are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency46 GHz
Maximum Frequency48 GHz
Insertion Loss0.5 dB
Isolation18 dB
Return Loss18 dB
Forward Power Handling5 W (CW)
Reverse Power Handling-
RF PortWR-22 Waveguide
Device TypeIsolator
