Q-Band Mechanically Tuned Gunn Oscillator

46 GHz, ±2 GHz Tuning Bandwidth, +16 dBm Output Power, WR-22 Waveguide
SKU:SOM-46304316-22-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

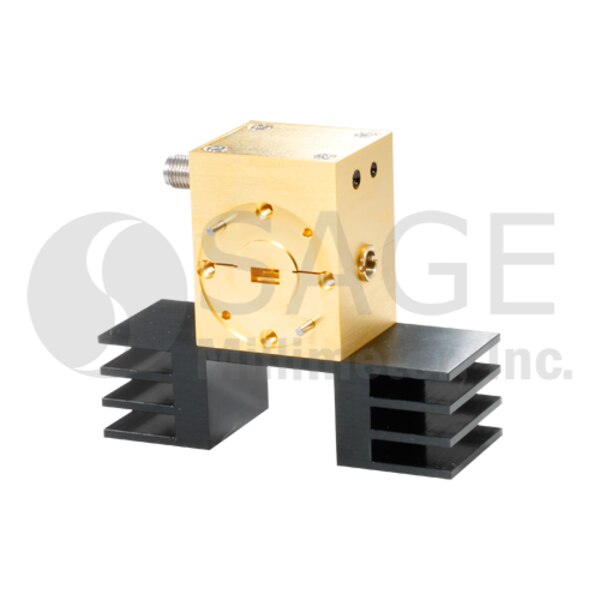

SOM-46304316-22-S1 is a Q-band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +16 dBm typical power. The oscillator features a frequency tuning range of 44 to 48 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,600.00
3 - 4$3,420.00
5 - 9$3,249.00

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency46 GHz
Output Power+16 dBm
Mechanical Tuning Range±2 GHz
Bias Tuning Range (+4.5 to +5.0 VDC)±10 MHz
Bias+3.5 VDC/800 mA
RF PortWR-22 Waveguide
Mechanical TuningSelf-Locking Set Screw
