WR-10 Waveguide Cassegrain Antenna

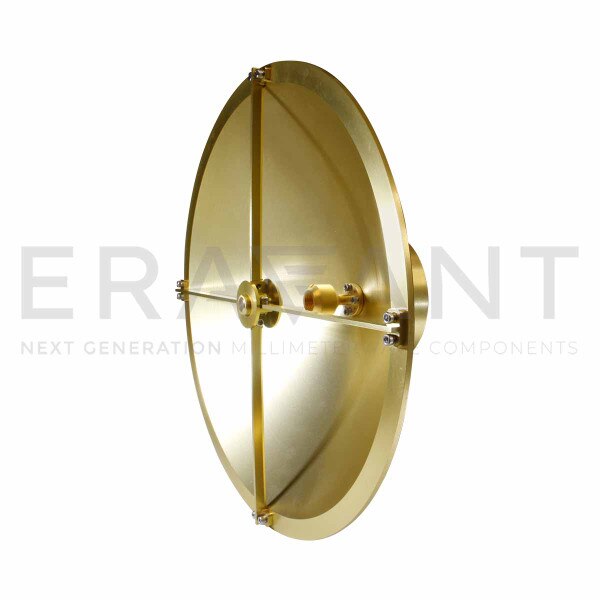

SAY-9239634507-094-S1 is a W-band Cassegrain antenna that offers a nominal gain of 45 dBi and a typical half power beamwidth of 0.7 degrees from 92 to 96 GHz. The aluminum reflector offers a light-weight and rugged mechanical structure and is treated with a chem film conversion coating for corrosion resistance. A corrugated scalar feed horn is used to provide optimal feed efficiency, low side lobes, high cross-pol rejection, and uniform illumination. The antenna port is a Ø0.094” circular waveguide with UG-387/U-M anti-cocking flange and can support both linear and circular polarized waveforms. Other port configurations, such as a WR-10 waveguide port, are available under different model numbers.
