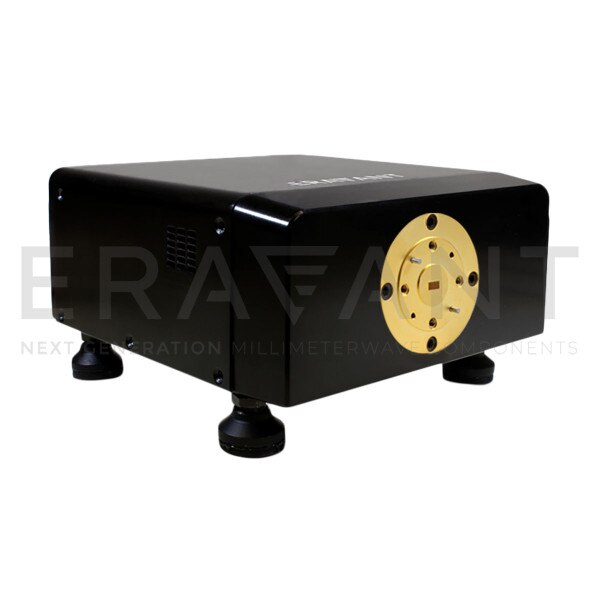

U-Band Up-Converter

40 to 60 GHz RF Output, DC to 20 GHz IF Input, WR-19 Waveguide
STV-00-19-S1 is a U-Band up-converter that converts IF signals from a frequency range of DC to 20 GHz with -5 dBm power to the millimeterwave frequency at 40 to 60 GHz. The up-converter requires 10 to 15 GHz at +3 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment fro millimeterwave testing purposes.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency40 GHz
Maximum RF Frequency60 GHz
Minimum IF FrequencyDC
Maximum IF Frequency20 GHz
Minimum LO Frequency10 GHz
Maximum LO Frequency15 GHz
RF PortWR-19 Waveguide
