4-Port Bi-directional Directional Coupler

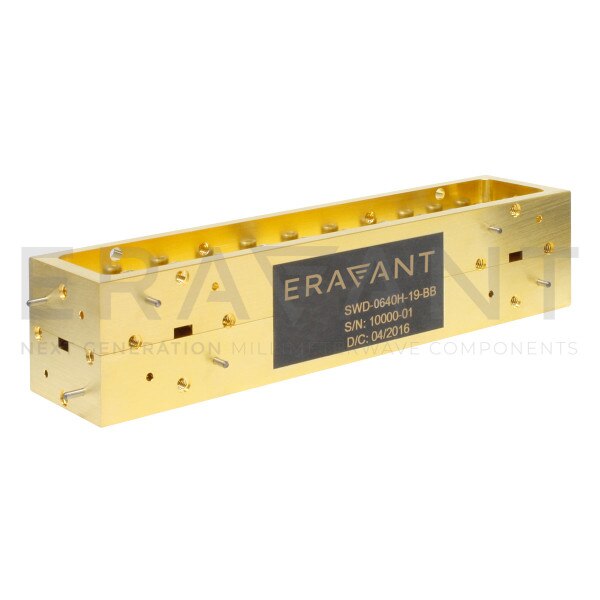

SWD-0640H-19-BB is a U band, four-port waveguide bi-directional coupler that delivers a 6 dB nominal coupling level and 35 dB minimum directivity across the full waveguide band from 40 to 60 GHz. The bi-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-19 waveguides with UG-383/U-M flanges. Other coupling levels are available under different model numbers.
