U-Band DPDT Motorized Switch, Product Discontinued

40 to 60 GHz, 50 dB Isolation, WR-19 Waveguide
This product has been improved and is now listed as SWJ-19-T1. Read more about Limited Run Products here.

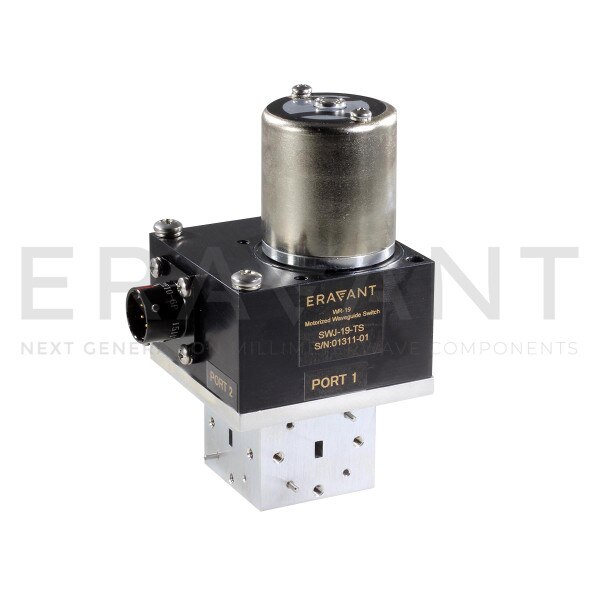

SWJ-19-TS is a WR-19 motorized double pole, double throw (DPDT) transfer switch with a TTL driver that covers the frequency range of 40 to 60 GHz. The switch has four ports and the switching is E plane. The switch is a bi-directional device which allows each port to be switched on and off between the adjacent ports. The insertion loss of the switch is 0.5 dB typical and the typical isolation is 50 dB. The switch has WR-19 waveguides with UG-383/U-M flanges. The bias and control signal connector is MS3112E-10-6P type.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss0.5 dB
Isolation50 dB
Return Loss20 dB
Bias±28 VDC/250 mA
Switching Speed125 mS
Power Handling100 W (CW)
RF PortsWR-19 Waveguide
