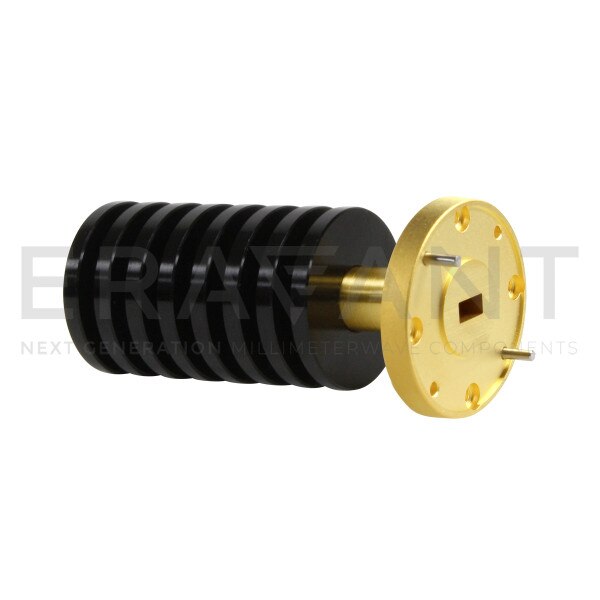

U-Band Fixed Termination Load

40 to 60 GHz, 5.0 W Power Handling, WR-19 Waveguide
SKU:SWL-1937-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWL-1937-S1 is a medium power, U-Band termination load that covers the frequency range of 40 to 60 GHz. The termination load exhibits a typical VSWR of 1.06:1. It is designed and manufactured to offer a good match for system applications. Custom levels of power handling are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$630.00
10 - 24$567.00
25 +$510.30

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Power Handling, Watts5.0 W
Power Handling, dBm37 dBm
VSWR1.06
Load TypeFixed
Waveguide PortWR-19 Waveguide
