U-Band Power Amplifier with Uni-Guide™

40 to 60 GHz, 35 dB Gain, +20 dBm P1dB, In-line WR-19 Waveguide
SKU:SBP-4036033520-1919-E1
Availability:Contact Us for Quote

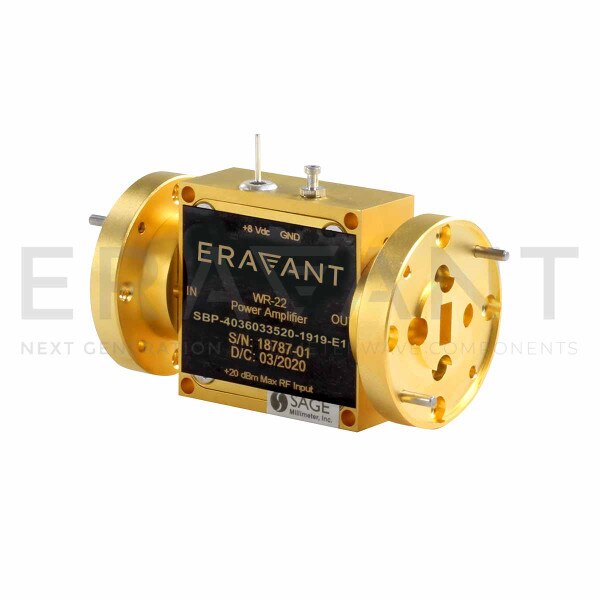

SBP-4036033520-1919-E1 is an U-band power amplifier with a typical small signal gain of 35 dB and a nominal P1dB of +20 dBm in the frequency range of 40 to 60 GHz. The DC power requirement for the amplifier is +8 VDC/950 mA. The mechanical configuration offers an in line structure with WR-19 Uni-Guide™ waveguides. Other port configurations, such as a right angle structure with WR-19 waveguides or 1.85 mm connectors, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain35 dB
P1dB+20 dBm
Psat+23 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Voltage+8 VDC
DC Bias950 mA
RF Input/OutputWR-19 Uni-Guide™ Waveguide
ConfigurationStandard
