U-Band Magic Tee

40 to 60 GHz, 30 dB Sum and Difference Port Isolation, 20 dB Collinear Port Isolation, WR-19 Waveguide
SKU:SWM-40360320-19-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

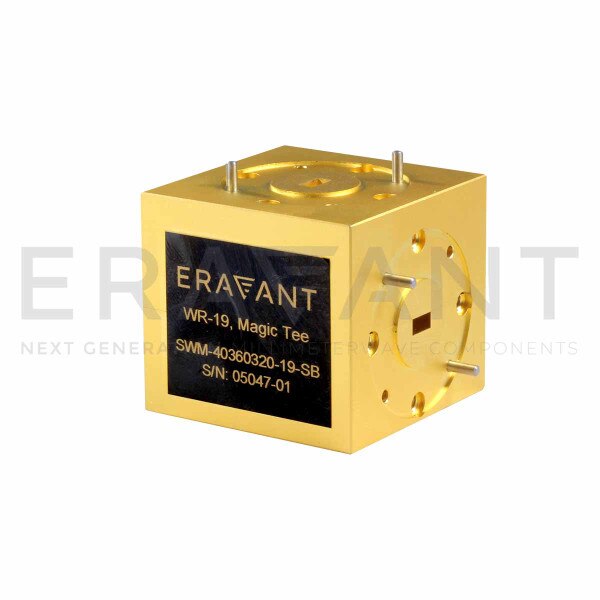

SWM-40360320-19-SB is a U band magic tee that covers the frequency range of 40 to 60 GHz. This magic tee is a four-port hybrid coupler and/or power divider with two collinear arms, an E-plane (difference) arm and an H-plane (sum) arm. The magic tee offers a 0.3 dB nominal insertion loss and high isolation between the two collinear arms and between the sum and difference arms. All waveguide ports have standard WR-19 waveguides with UG-383/U-M flanges.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 9$820.00
10 - 24$738.00
25 +$664.20

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss0.30 dB
Isolation, Sum and Difference Ports30 dB
Isolation, Collinear Ports20 dB
VSWR1.5
Magic Tee TypeSplit-Block
Sum and Difference PortsWR-19 WG
Collinear PortsWR-19 WG
