U-Band Reflective SPST PIN Diode Switch

40 to 60 GHz, 30 dB Isolation, WR-19 Waveguide
SKU:SKS-4036032530-1919-R1
Availability:1 Week ARO

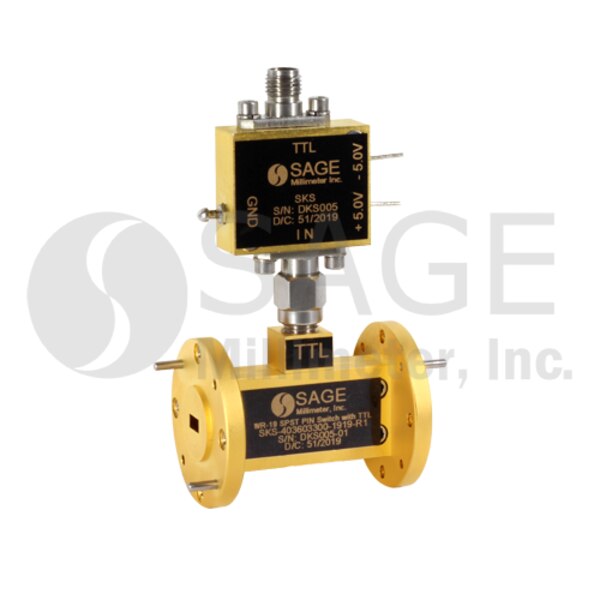

SKS-4036032530-1919-R1 is a PIN diode based, single pole, single throw (SPST) switch with a TTL driver that covers 40 to 60 GHz. This model offers a low insertion loss of 2.5 dB with a minimum isolation of 25 dB. The SPST switch has a WR-19 waveguide with UG-383/U-M flanges at the RF input and output and an SMA(F) connector for TTL control. The SPST switch can be modified for various operational frequencies under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$2,850.00
3 - 4$2,707.50
5 - 9$2,572.13

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss2.5 dB
Isolation30 dB
Power Handling+20 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-19 Waveguide
