U-Band Low Noise Amplifier with Uni-Guide™

40 to 60 GHz, 30 dB Gain, 6.0 dB Noise Figure, In-line WR-19 Waveguide
Availability:3 to 4 Weeks ARO

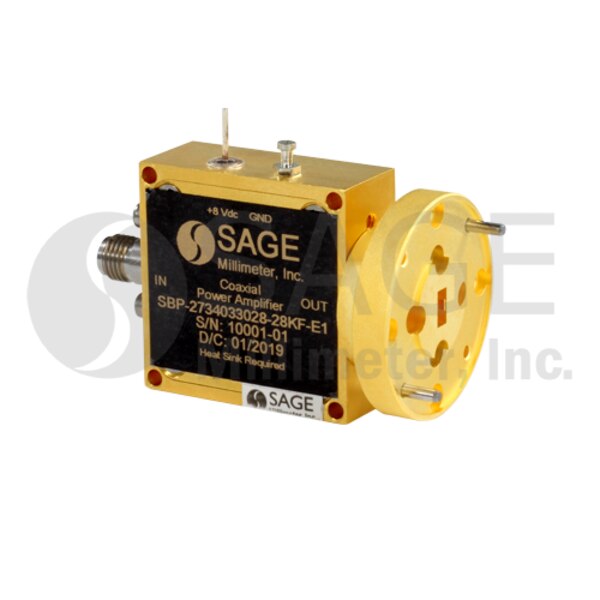

SBL-4036033080-VF19-E1 is a low noise amplifier with a typical small signal gain of 30 dB across the frequency range of 40 to 60 GHz and a nominal noise figure of 6 dB. The DC power requirement for the amplifier is +8 VDC/400 mA. The mechanical configuration offers an inline structure with a 1.85 mm (F) connector as the input port and a WR-19 Uni-Guide™ waveguide as the output port. Other port configurations, such as a right angle structure with WR-19 waveguides or 1.85 mm connectors, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain30 dB
Noise Figure6.0 dB
P1dB+16 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Bias+8 VDC/400 mA
RF Input/Output1.85 mm (F)/WR-19 Uni-Guide™ Waveguide
