U-Band Electrical Attenuator

40 to 60 GHz, 30 dB Attenuation, WR-19 Waveguide
SKU:SKA-4036032530-1919-A1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

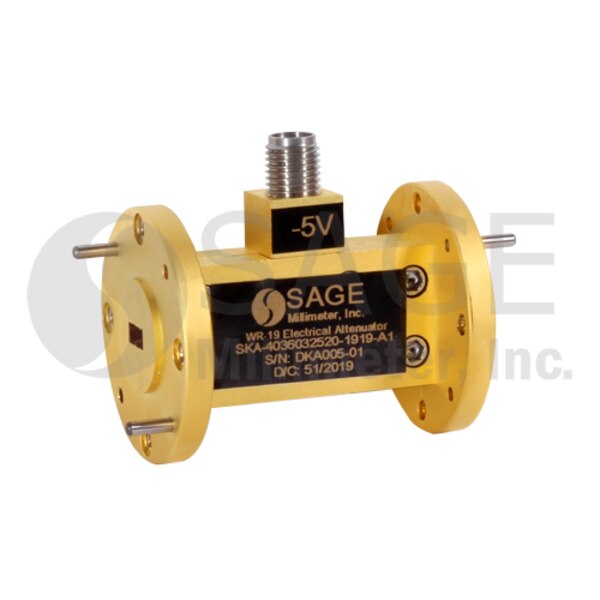

SKA-4036032530-1919-A1 is a U-Band, PIN diode based electrical attenuator. The attenuator exhibits 2.5 dB typical insertion loss and 30 dB nominal attenuation across the frequency range of 40 to 60 GHz. The control voltage of the standard model is 0 to -5 VDC with a typical current draw of 5 mA. However, the attenuator can also be configured with a positive control voltage from 0 to +5 VDC. The control speed of the attenuator can go up to 100 ns. The RF input and output ports are WR-19 waveguides with UG-383/U-M flanges, and a female SMA connector provides the control signal.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $2,550.00
3 - 4 $2,422.50
5 - 9 $2,301.38

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss2.5 dB
Attenuation30 dB
Power Handling+20 dBm
Control Bias0 to -5 VDC/5 mA
Control Speed100 ns
RF PortWR-19 Waveguide
