3-Port Directional Coupler

40 to 60 GHz, 3 dB Coupling, 40 dB Directivity, WR-19 Waveguide, U-Band
SKU:SWD-0340H-19-SB
Availability:2 to 3 Weeks ARO

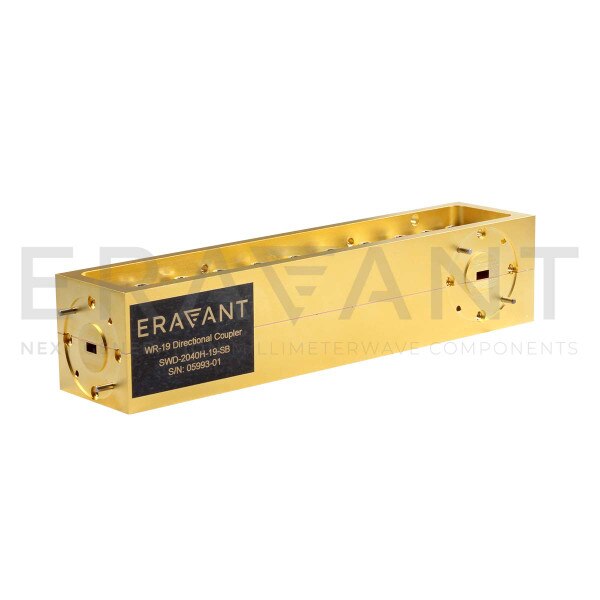

SWD-0340H-19-SB is a U band, three-port waveguide directional coupler that delivers a 3 dB nominal coupling level and 35 dB minimum directivity across the full waveguide band from 40 to 60 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-19 waveguides with UG-383/U-M flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 +$850.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss0.7 dB
Coupling3 dB
Directivity40 dB
VSWR1.1
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-19 WG
