4-Port Bi-directional Directional Coupler

40 to 60 GHz, 3 dB Coupling, 40 dB Directivity, WR-19 Waveguide, U-Band
SKU:SWD-0340H-19-BB
Availability:2 to 3 Weeks ARO

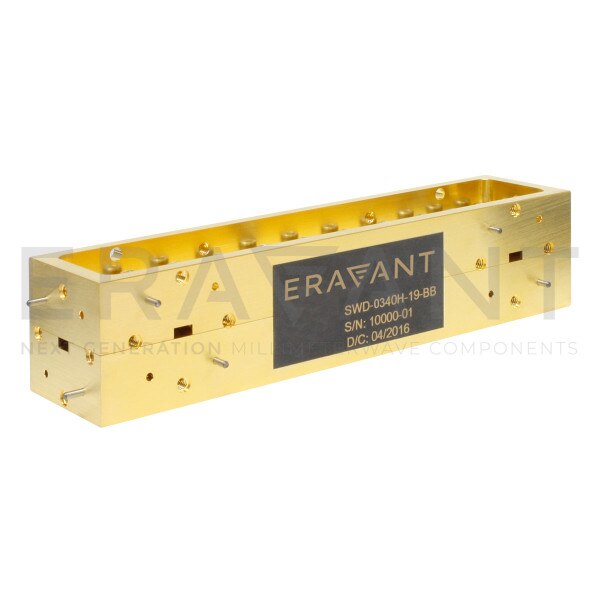

SWD-0340H-19-BB is a U band, four-port waveguide bi-directional coupler that delivers a 3 dB nominal coupling level and 35 dB minimum directivity across the full waveguide band from 40 to 60 GHz. The bi-directional coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-19 waveguides with UG-383/U-M flanges. Other coupling levels are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 - 24$850.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss0.7 dB
Coupling3 dB
Directivity40 dB
VSWR1.1
Coupler Type4-Port Bi-directional, Split-block
RF PortsWR-19 WG
