WR-19 Noise Source with TTL and Trigger Switch

40 GHz to 60 GHz, 15 dB ENR, WR-19 Uni-Guide™ Waveguide
SKU:STZ-19-0T2

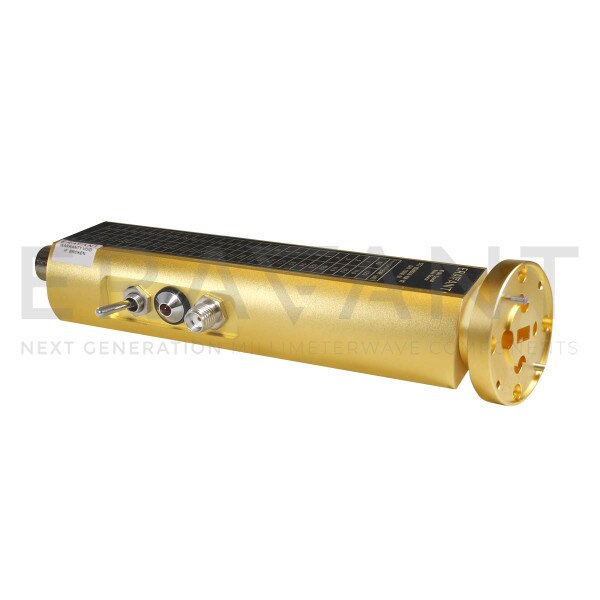

STZ-19-0T2 is a WR-19 noise source that delivers 15 dB nominal ENR across the frequency range of 40 GHz to 60 GHz. The RF port uses a WR-19 Uni-Guide™ Waveguide with UG-383/U-M Anti-Cocking Flange and the DC bias port is equipped with a BNC (F) connector, which is readily available for standard noise figure meter and noise figure analyzer interfaces. The noise source is designed with improved port return loss for more reliable and accurate noise figure measurements. The noise source can work also in either CW or pulse AM mode up to 1 kHz depending on the driving signal. The noise source features a TTL triggering signal port for automatic test systems and a toggle switch to manually turn the module on and off.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $5,750.00
2 $5,462.50
3 - 4 $5,189.38

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
ENR15 dB
ENR Flatness±3 dB
AM Modulation Rate1 kHz
Return Loss12 dB
DC Bias+28 VDC/30 mA
RF OutputWR-19 Uni-Guide™ Waveguide
