W-Band Cassegrain Antenna

39 dBi Gain, 92 to 96 GHz, 6" Reflector Diameter, 0.094" Diameter Circular Waveguide
SKU:SAY-9239633914-094-S1

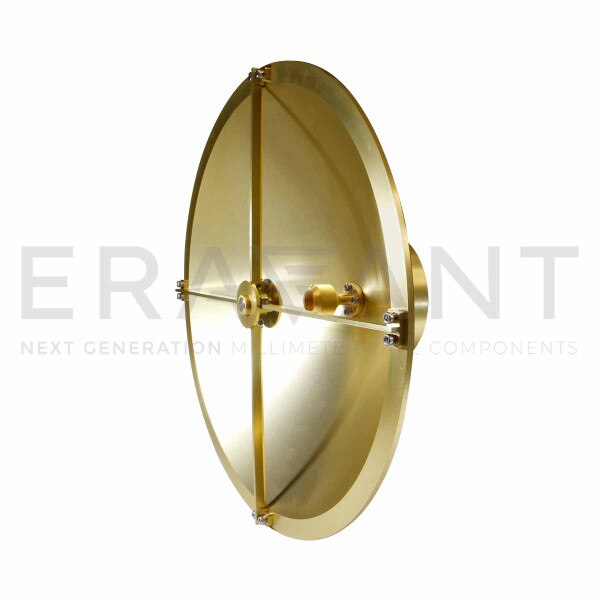

SAY-9239633914-094-S1 is a W-band Cassegrain antenna that offers a nominal gain of 39 dBi and a typical half power beamwidth of 1.4 degrees from 92 to 96 GHz. The aluminum reflector offers a light-weight and rugged mechanical structure and is treated with a chem film conversion coating for corrosion resistance. A corrugated scalar feed horn is used to provide optimal feed efficiency, low side lobes, high cross-pol rejection, and uniform illumination. The antenna port is a Ø0.094” circular waveguide with UG-387/U-M anti-cocking flange and can support linear polarized waveforms. Other port configurations, such as a Ø0.110” circular waveguide port, are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency92 GHz
Maximum Frequency96 GHz
Gain39 dBi
3 dB Beamwidth1.4°
Return Loss14 dB
PolarizationLinear and Circular
Antenna Port0.094" Dia Circular WG
