Ka-Band Power Amplifier with Uni-Guide™

38 to 40 GHz, 40 dB Gain, +32 dBm P1dB, WR-28 Waveguide
SKU:SBP-3834034032-2828-E1-HR
Availability:Contact Us for Quote

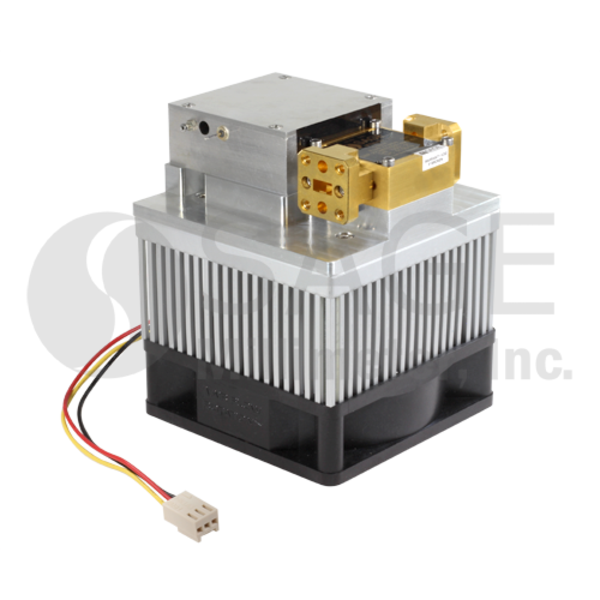

SBP-3834034032-2828-E1-HR is a power amplifier with a typical small signal gain of 40 dB and a nominal P1dB of +32 dBm across the frequency range of 38 to 40 GHz. The DC power requirement for the amplifier is +8 VDC/2.4 A at quiescent and +8 VDC/4.0 A under RF drive. The RF connectors are WR-28 Uni-Guide™ waveguides. Other port configurations, such as K connectors, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency38 GHz
Maximum Frequency40 GHz
Gain40 dB
P1dB+32 dBm
Psat+34 dBm
Input Return Loss10 dB
Output Return Loss10 dB
DC Voltage+8 VDC
DC Bias4000 mA
RF Input/OutputWR-28 Uni-Guide™ Waveguide
ConfigurationHeatsink Included
