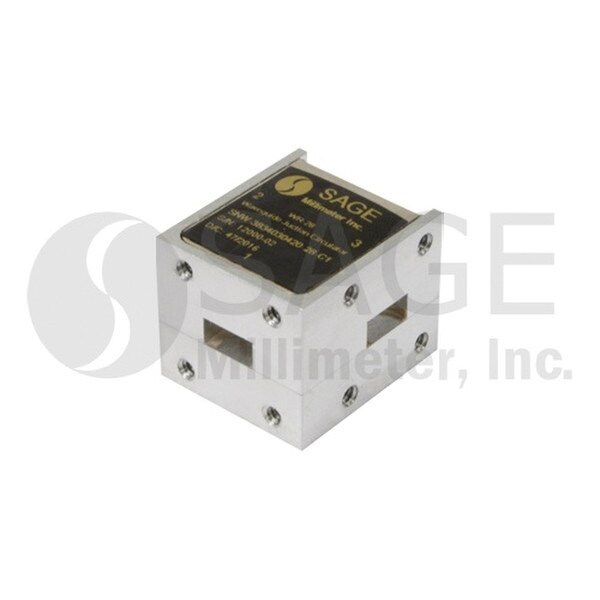

Ka-Band Junction Circulator

38 to 40 GHz, 20 dB Isolation, WR-28 Waveguide
SKU:SNW-3834030420-28-C1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SNW-3834030420-28-C1 is a Ka band, waveguide junction circulator that covers the frequency range of 38 to 40 GHz. The waveguide junction circulator is designed and manufactured to provide a low insertion loss of 0.3 dB nominal, a typical isolation of 20 dB, and a much shorter insertion length for system integration. The input and output ports are WR-28 waveguides with UG-599/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $275.00
25 - 49 $247.50
50 - 99 $222.75

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency38 GHz
Maximum Frequency40 GHz
Insertion Loss0.3 dB
Isolation20 dB
VSWR1.3
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-28 Waveguide
Device TypeCirculator
