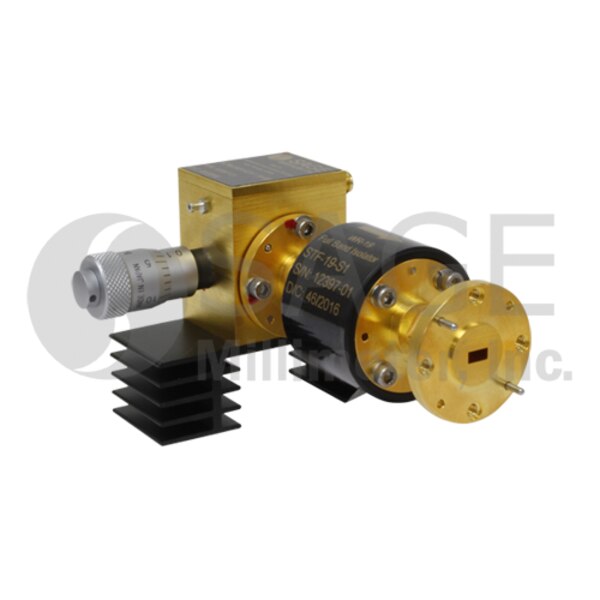

Q-Band Wide Mechanical Tuning-Bandwidth Gunn Oscillator with Isolator

38 GHz, ±5 GHz Tuning Bandwidth, +20 dBm Output Power, WR-22 Waveguide
SKU:SOF-2220-MI
Availability:6 to 8 Weeks ARO
SOF-2220-MI is a Q-Band, wide mechanical tuning bandwidth Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +20 dBm typical power with low AM/FM noise and harmonic emissions. The oscillator has a center frequency of 38 GHz and a mechanical tuning range of ±5 GHz. Compared to its multiplier based counterparts, the Gunn oscillator is a lower cost alternative and a cleaner source. In addition, this model features an integrated isolator to achieve a more stable performance. By adding a Gunn oscillator modulator/regulator and temperature heater, the performance of the oscillator can be enhanced even further.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 $5,750.00
2 $5,462.50
3 - 4$5,189.38

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency38 GHz
Output Power+20 dBm
Mechanical Tuning Range±5 GHz
Bias+4.2 VDC/700 mA
RF PortWR-22 Waveguide
