Q-Band Mechanically Tuned Gunn Oscillator with Isolator

38 GHz, ±5.00 GHz Tuning Bandwidth, +20 dBm Output Power, WR-22 Waveguide
SKU:SOM-38310320-22-MI
Availability:6 to 8 Weeks ARO

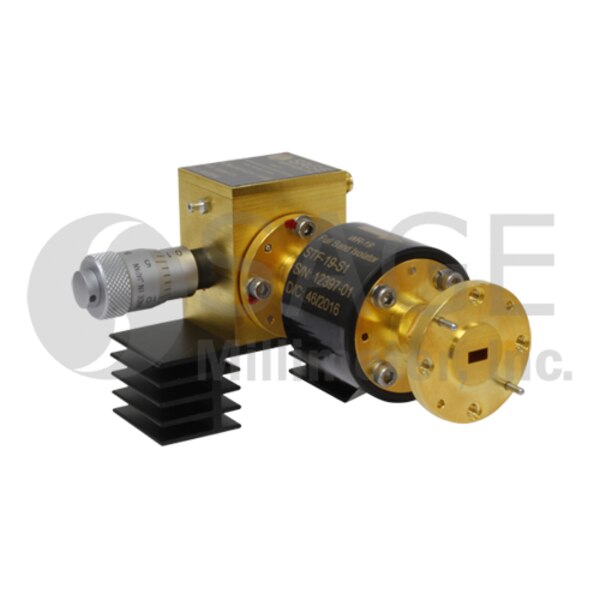

SOM-38310320-22-MI is a Q-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +20 dBm typical power. The oscillator features a frequency tuning range of 33 to 43 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. In addition, this model features an integrated isolator to achieve a more stable performance. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding a Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$7,100.00
2 - 2$6,745.00
3 +$6,407.75

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency38 GHz
Output Power+20 dBm
Mechanical Tuning Range±5000 MHz
Bias Tuning Range (+4.0 to +5.0 VDC)±100 MHz
Bias+4.2 VDC/880 mA
RF PortWR-22 Waveguide
Mechanical TuningMicrometer
