X4 Active Frequency Multiplier

36 to 60 GHz, +18 dBm Output Power, WR-19 Waveguide, U-Band
SKU:SFA-363603418-19SF-S1
Availability:4 to 6 Weeks ARO

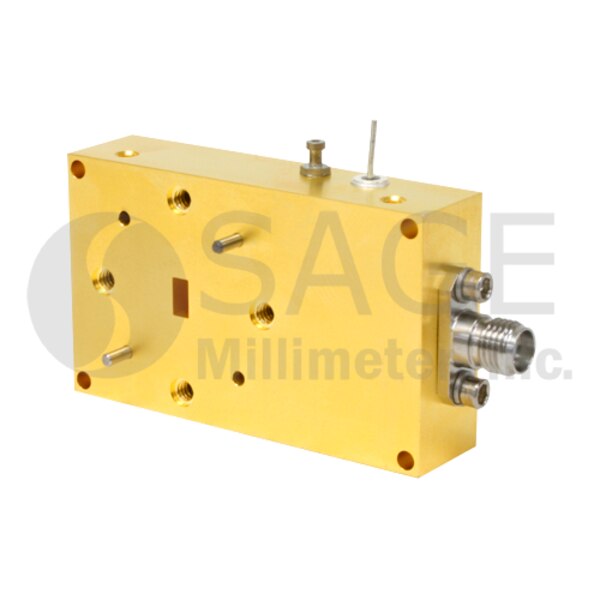

SFA-363603418-19SF-S1 is an active X4 frequency multiplier. The multiplier has an input frequency of 9 to 15 GHz with a minimum input power of 0 dBm and an output frequency of 36 to 60 GHz with a typical output power of +18 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/800 mA. The input port configuration is a female SMA connector and the output is a WR-19 waveguide with a UG-383/U-M Anti-Cocking flange. Other port configurations are available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $4,650.00
3 - 4 $4,417.50
5 - 9 $4,196.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Output Frequency36 GHz
Maximum Output Frequency60 GHz
Output Power+18 dBm
Minimum Input Frequency9 GHz
Maximum Input Frequency15 GHz
Input Power0 dBm
DC Bias+8 VDC/800 mA
Output PortWR-19 WG
Input PortSMA (F)
