Q-Band Electrical Attenuator

35 to 45 GHz, 30 dB Attenuation, WR-22 Waveguide, Positive Bias

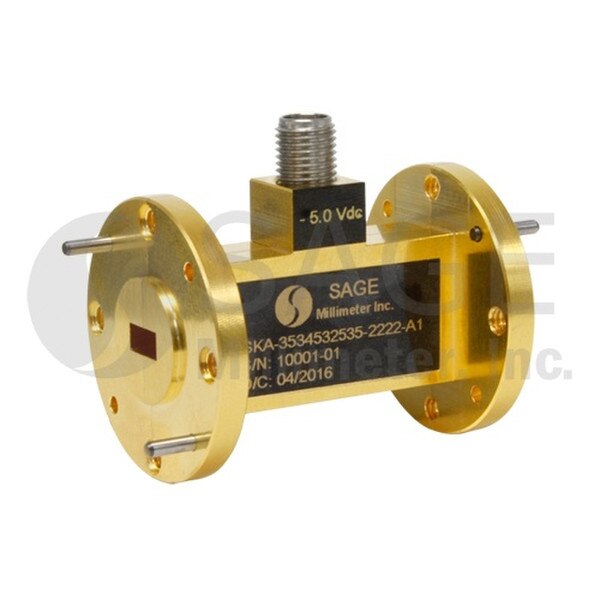

SKA-3534532535-2222-AP is a Q-Band, PIN diode based electrical attenuator. The attenuator exhibits 2.5 dB typical insertion loss and 30 dB nominal attenuation across the frequency range of 35 to 45 GHz. The control voltage of the standard model is 0 to +5 VDC with a typical current draw of 5 mA. However, the attenuator can also be configured with a negative control voltage from 0 to -5 VDC. The control speed of the attenuator can go up to 100 ns. The RF input and output ports are WR-22 waveguides with UG-383/U flanges, and a female SMA connector provides the control signal.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency35 GHz
Maximum Frequency45 GHz
Insertion Loss2.5 dB
Attenuation30 dB
DC Voltage Supply+5 V
DC Current5 mA
Switching Speed100 ns
RF PortWR-22 Waveguide
